FB_IEC870_PartyLineCtrl

VAR_IN_OUT

VAR_IN_OUT
    hSerial     : T_HSERIALCTRL;
END_VAR

hSerial: Connection handle to FB_IEC870_SerialLineCtrl. Via this variable the data to be sent and received are exchanged with FB_IEC870_SerialLineCtrl.

VAR_INPUT

VAR_INPUT
    eMode    : E_IEC870_5_101PartylineMode := eIEC870_PartylineMode_Off;
    deviceID : UDINT := 0;
    bCTS     : BOOL := FALSE;
END_VAR

eMode: Party line activation mode.

deviceID: This parameter is not used in TwinCAT 3.1 and does not have to be set.

bCTS: Clear to send (for the IEC link layer).

VAR_OUTPUT

VAR_IN_OUT
    bError  : BOOL;
    nErrID  : UDINT;
    bRTS    : BOOL := FALSE;
END_VAR

bError: Becomes TRUE as soon as an error has occurred.

nErrID: Returns the error code, if the bError output is set.

bRTS: Request to send (from the IEC link layer).

Example for line mode configuration:

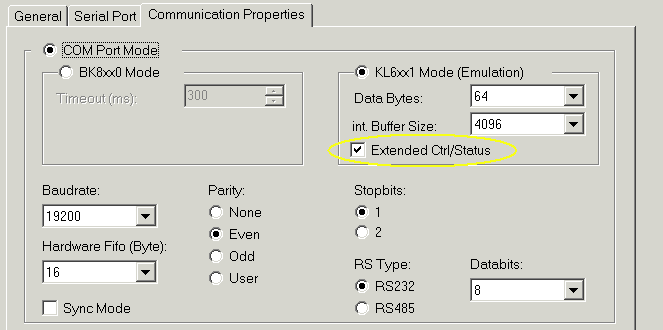

The RTS line can be mapped directly as an IO output in the PLC. In the TwinCAT System Manager the option "Extended Ctrl/Status" must be activated. The eMode parameter at the function block must be set to eMode := eIEC870_PartylineMode_Ext_On.

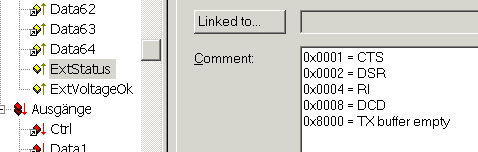

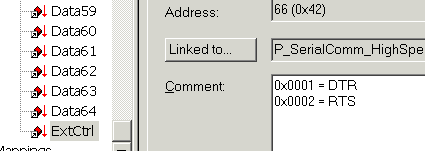

The "serial_ExtCtrl" variable must be linked with "ExtCtrl" (RTS output) and the "serial_ExtStatus" variable with "ExtStatus".

PROGRAM P_SerialComm_HighSpeed
VAR
    serial_In         AT%I*   : PcComInData;
    serial_Out        AT%Q*   : PcComOutData;
    KL6_In            AT%I*   : KL6inData5B;
    KL6_Out           AT%Q*   : KL6outData5B;
    serial_ExtStatus  AT%I*   : WORD;
    serial_ExtCtrl    AT%Q*   : WORD;

    hSerial          : T_HSERIALCTRL;(* Serial connection control handle *)
    fbSerialLineCtrl : FB_IEC870_SerialLineCtrl := ( Mode := SERIALLINEMODE_PC_COM_PORT(*SERIALLINEMODE_KL6_5B_STANDARD *),
                        Baudrate := 19200,
                        NoDatabits := 8,
                        Parity := PARITY_EVEN,
                        Stopbits := 1,
                        Handshake := HANDSHAKE_NONE,
                        ContinousMode := FALSE );

    fbPartyLineCtrl  : FB_IEC870_PartyLineCtrl := ( eMode := eIEC870_PartylineMode_Ext_On );
    delay            : TON;
    tRTS_DEALY_ON    : TIME := T#100ms;
    tRTS_DELAY_OFF   : TIME := T#100MS;
END_VAR

fbSerialLineCtrl(  pComIn := SEL( fbSerialLineCtrl.Mode = SERIALLINEMODE_KL6_5B_STANDARD, ADR( serial_In ), ADR( KL6_In ) ),
        pComOut := SEL( fbSerialLineCtrl.Mode = SERIALLINEMODE_KL6_5B_STANDARD, ADR( serial_Out ), ADR( KL6_Out ) ),
        SizeComIn :=  SEL( fbSerialLineCtrl.Mode = SERIALLINEMODE_KL6_5B_STANDARD, SIZEOF( serial_In ), SIZEOF( KL6_In ) ),
        hSerial  := hSerial );

fbPartyLineCtrl( hSerial:= hSerial );
IF fbPartyLineCtrl.bRTS <> fbPartyLineCtrl.bCTS THEN
    IF fbPartyLineCtrl.bRTS THEN
        serial_ExtCtrl.1  := TRUE;(* Switch RTS line ON *)
        delay( in := TRUE, PT := tRTS_DEALY_ON );(* Wait until line enabled *)
     IF delay.Q THEN
            delay( in := FALSE );
            fbPartyLineCtrl.bCTS := TRUE;(* Set clear to send *)
        END_IF
    ELSE
        IF serial_ExtStatus.15  THEN
            delay( in := TRUE, PT := tRTS_DELAY_OFF );(* Wait until all data send *)
            IF delay.Q THEN
                delay( in := FALSE );
                serial_ExtCtrl.1  := FALSE;(* Switch RTS line OFF *)
                fbPartyLineCtrl.bCTS := FALSE;(* Reset clear to send *)
            END_IF
        END_IF
    END_IF
END_IF

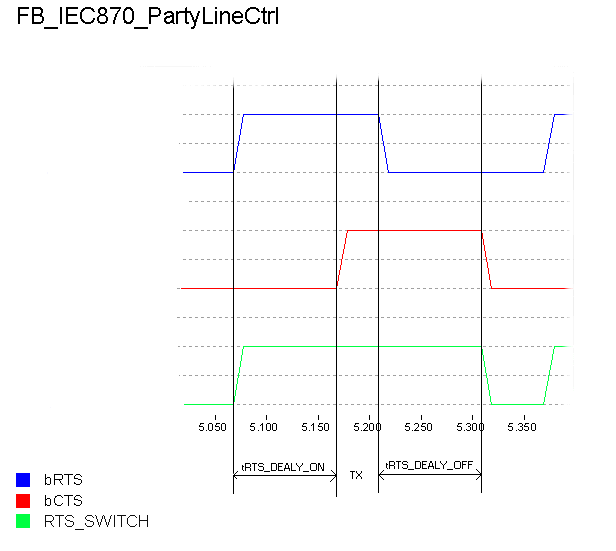

Implementation of line mode in the fast communication task: The RTS_SWITCH variable (serial_ExtCtrl.1) is used to switch the line for transmit mode ON and OFF. The tRTS_DEALY_ON delay time (lead time) ensures that activation of the line for the IEC slave was complete, the tRTS_DELAY_OFF delay time (overrun time) ensures that all data bytes sent were received by the central station, including the last one (serial_ExtStatus.15).
