Example with the FB_DBRecordInsert and FB_DBRecordSelect function blocks

Variable Declaration

(* Declaration *)PROGRAM MAIN
VAR
    eState            : E_SQLStatement;

    NT_GetTime1       : NT_GetTime;
    bTimestart        : BOOL;
    tTime             : TIMESTRUCT;

    FB_FormatStringDateTime: FB_FormatString;
    sDateTimeString   : T_MaxString;

    TestValue1        : REAL := 123.456;
    TestValue2        : REAL := 234.567;
    TestValue3        : REAL := 345.678;
    TestValue4        : STRING(255) := 'No error occurred';

    FB_FormatString1  : FB_FormatString;
    sInsertString     : T_MaxString;
    bError            : BOOL;
    nErrid            : UDINT;

    FB_DBRecordInsert1: FB_DBRecordInsert;
    bStartstopInsert  : BOOL;
    bBusyInsert       : BOOL;
    bErrInsert        : BOOL;
    nErridInsert      : UDINT;
    stSQLStateInsert  : ST_DBSQLError;

    stRecord          : ST_Record;

    FB_DBRecordSelect1: FB_DBRecordSelect;
    nRecIndex         : UDINT := 0;
    bStartstopSelect  : BOOL;
    bBusySelect       : BOOL;
    bErrorSelect      : BOOL;
    nErrIDSelect      : UDINT;
    stSQLStateSelect  : ST_DBSQLError;
    nRecordCount      : UDINT;
END_VAR

Enum E_SQLStatement

TYPEE_SQLStatement:(
    eSQL_INSERT  := 0,
    eSQL_SELECT  := 1
);
END_TYPE

Struct ST_Record

TYPEST_Record :
STRUCT
    Timestamp : DT;
    PLC_Value1: REAL;
    PLC_Value2: REAL;
    PLC_Value3: REAL;
    PLC_Value4: STRING;
END_STRUCT
END_TYPE

PLC program

CASEeState OF
    eSQL_INSERT:
        (*Create the timestamp*)
        NT_GetTime1( START:= bTimestart, TIMESTR=> tTime);
        IF NOT NT_GetTime1.BUSY THEN
            bTimestart:= NOT bTimestart;
        END_IF

        FB_FormatStringDateTime(
            sFormat   := '%D.%D.%D %D:%D:%D',
            arg1      := F_WORD(tTime.wYear),
            arg2      := F_WORD(tTime.wMonth),
            arg3      := F_WORD(tTime.wDay),
            arg4      := F_WORD(tTime.wHour),
            arg5      := F_WORD(tTime.wMinute),
            arg6      := F_WORD(tTime.wSecond),
            sOut       => sDateTimeString);

        (*Create the SQL-INSERT command*)
        FB_FormatString1(
            sFormat   := 'INSERT INTO tbl_Test VALUES($'%S$',%F,%F,%F,$'%S$')',
            arg1      := F_STRING(sDateTimeString),
            arg2      := F_REAL(TestValue1),
            arg3      := F_REAL(TestValue2),
            arg4      := F_REAL(TestValue3),
            arg5      := F_STRING(TestValue4),
            sOut       => sInsertString,
            bError     => bError,
            nErrId     => nErrid);

        (*Write the record to the database*)
        FB_DBRecordInsert1(
            sNetID    := ,
            hDBID     := 1,
            sInsertCmd:= sInsertString,
            bExecute  := bStartstopInsert,
            tTimeout  := T#15s,
            bBusy      => bBusyInsert,
            bError     => bErrInsert,
            nErrID     => nErridInsert,
            sSQLState  => stSQLStateInsert);

    eSQL_SELECT:
        (*Read one record from the database*)
        FB_DBRecordSelect1(
            sNetID    := ,
            hDBID     := 1,
            sSelectCmd:= 'SELECT * FROM tbl_Test',
            nRecordIndex:= nRecIndex,
            cbRecordSize:= SIZEOF(stRecord),
            pDestAddr := ADR(stRecord),
            bExecute  := bStartstopSelect,
            tTimeout  := T#15s,
            bBusy      => bBusySelect,
            bError     => bErrorSelect,
            nErrID     => nErrIDSelect,
            sSQLState  => stSQLStateSelect,
            nRecords   => nRecordCount);
END_CASE

To use this sample, you have to declare the Access database "Sample7.mdb" in the XML configuration file.

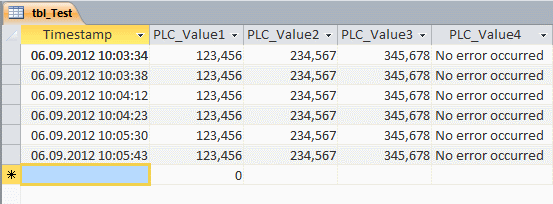

A record with the four PLC values and the timestamp is created in the database by generating a positive edge at the variable "bStartstopInsert".
