Logging of a PLC variable with FB_DBWrite

This sample illustrates logging of a PLC variables from the PLC in a database and the operating principle of the individual write modes.

Download: TcDBSrv_InfoSysSamples.zip

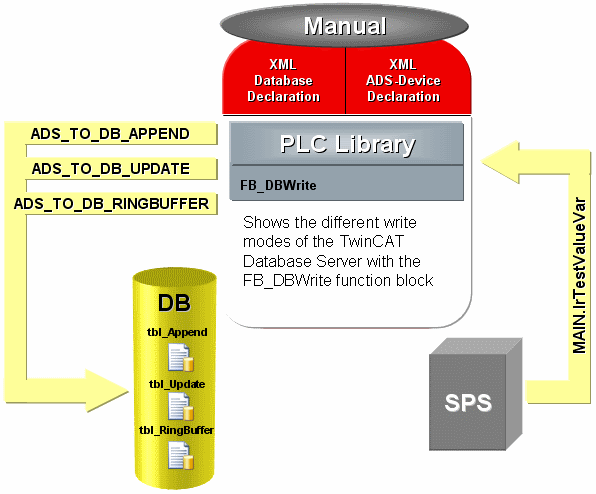

Logging of a PLC variable with FB_DBWrite 1:

Database type used	MS SQL
Compatible database types	ASCII, MS SQL, MS Compact SQL, MS Access, MySQL, PostgreSQL, DB2, Oracle, InterBase/Firebird, XML
Function blocks used	FB_DBWrite
Libraries to be integrated	Tc2_Database, Tc2_System, Tc2_Standard
Download file list	TcDBSrv_InfoSysSamples.tszip, CurrentConfigDataBase.xml, SQLQuery.sql

In order to be able to use this sample, you have to adapt the server name and the authentication in the XML configuration file (CurrentConfigDataBase.xml). Ensure that no "TestDB" database is present before executing the SQLQuery.sql script.

Sample configuration:

The variable "eWriteMode" can be used to set the write mode for logging.
The write operation can then be started with a positive edge at the variable "bSTART".

Table assignment:

ADS_TO_DB_APPEND => eWriteAppend -> "tbl_Append"
ADS_TO_DB_UPDATE => eWriteUpdate -> "tbl_Update"
ADS_TO_DB_RINGBUFFER => eWriteRingBuffer -> "tbl_RingBuffer"

Table structure used

Column name	Data type	Null permitted	Feature
ID	Bigint	no	IDENTITY(1,1)
Timestamp	datetime	no
Name	Ntext	no
Value	Float	no

Variable Declaration

PROGRAM MAIN
VAR
(*Test symbol which will be logged into the different database tables*)
    lrTestValueVar       : LREAL := 123.456;

    eState               : E_SampleState := eIdle;
    R_TRIG1              : R_TRIG;

(*With a rising edge at bStart the FB_DBWrite block will be start once*)
    bSTART               : BOOL;

(*With eWriteMode you can select which FB_DBWrite block will be used*)
    eWriteMode           : E_SampleState := eWriteAppend;

    FB_DBWrite_Append    : FB_DBWrite;
    FB_DBWrite_Update    : FB_DBWrite;
    FB_DBWrite_RingBuffer: FB_DBWrite;

(*Status outputs from the three FB_DBWrite blocks*)
    bBusy                : BOOL;
    bErr                 : BOOL;
    bErrid               : UDINT;
    stSqlstate           : ST_DBSQLError;
END_VAR

Enum E_SampleState

TYPE E_SampleState :(
    eIdle           := 0,
    eWriteAppend    := 1,
    eWriteUpdate    := 2,
    eWriteRingBuffer:= 3
);
END_TYPE

PLC program

CASE eState OF
    eIdle :
        R_TRIG1(CLK:=bSTART);
        IF R_TRIG1.Q THEN
            lrTestValueVar  := lrTestValueVar + 1;
            eState          := eWriteMode;
            bSTART          := FALSE;
        END_IF
    (*Add a new record to the table tbl_Append*)
    eWriteAppend :
        FB_DBWrite_Append(
            sNetID          := ,
            hDBID           := 1,
            hAdsID          := 1,
            sVarName        := 'MAIN.lrTestValueVar',
            nIGroup         := ,
            nIOffset        := ,
            nVarSize        := ,
            sVarType        := ,
            sDBVarName      := 'lrTestValueVar',
            eDBWriteMode    := eDBWriteMode_Append,
            tRingBufferTime := ,
            nRingBufferCount:= ,
            bExecute        := TRUE,
            tTimeout        := T#15s,
            bBusy            => bBusy,
            bError           => bErr,
            nErrID           => bErrid,
            sSQLState        => stSqlstate);

        IF NOT bBusy THEN
            FB_DBWrite_Append(bExecute := FALSE);
            eState          := eIdle;
        END_IF
    (*Add a new record to the table tbl_Update if it not exist
     else the existing record will be updated*)
    eWriteUpdate :
        FB_DBWrite_Update(
            sNetID           := ,
            hDBID            := 2,
            hAdsID           := 1,
            sVarName         := 'MAIN.lrTestValueVar',
            nIGroup          := ,
            nIOffset         := ,
            nVarSize         := ,
            sVarType         := ,
            sDBVarName       := 'lrTestValueVar',
            eDBWriteMode     := eDBWriteMode_Update,
            tRingBufferTime  := ,
            nRingBufferCount := ,
            bExecute         := TRUE,
            tTimeout         := T#15s,
            bBusy             => bBusy,
            bError            => bErr,
            nErrID            => bErrid,
            sSQLState         => stSqlstate);

        IF NOT bBusy THEN
            FB_DBWrite_Update(bExecute := FALSE);
            eState           := eIdle;
        END_IF
    (*Add a new record to the table tbl_RingBuffer.
     If the maximum count is reached the records will be deleted in a FIFO process*)
    eWriteRingBuffer :
        FB_DBWrite_RingBuffer(
            sNetID           := ,
            hDBID            := 3,
            hAdsID           := 1,
            sVarName         := 'MAIN.lrTestValueVar',
            nIGroup          := ,
            nIOffset         := ,
            nVarSize         := ,
            sVarType         := ,
            sDBVarName       := 'lrTestValueVar',
            eDBWriteMode     := eDBWriteMode_RingBuffer_Count,
            tRingBufferTime  := ,
            nRingBufferCount := 10,
            bExecute         := TRUE,
            tTimeout         := T#15s,
            bBusy             => bBusy,
            bError            => bErr,
            nErrID            => bErrid,
            sSQLState         => stSqlstate);

        IF NOT bBusy THEN
            FB_DBWrite_RingBuffer(bExecute := FALSE);
            eState           := eIdle;
        END_IF
END_CASE

	TwinCAT Database Server All Microsoft SQL Compact databases, which are declared in the XML configuration file, must exist. They are not generated automatically. The declared ASCII files, on the other hand, are generated automatically if they do not exist.

Requirements

Development environment	Target platform	PLC libraries to be linked
TwinCAT v3.0.0	PC or CX (x86)	Tc2_Database
