Starting / stopping, cyclic logging

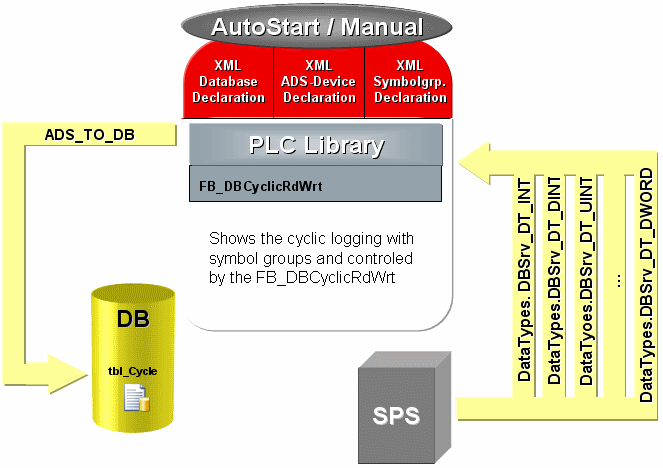

This sample illustrates the starting and stopping of cyclic logging from the PLC.

Download: TcDBSrv_InfoSysSamples.zip

Database type used	MS Compact SQL
Compatible database types	ASCII, MS SQL, MS Compact SQL, MS Access, MySQL, PostgreSQL, DB2, Oracle, InterBase/Firebird, XML
Function blocks used	FB_DBCyclicRdWrt
Libraries to be integrated	Tc2_Database, Tc2_System, Tc2_Standard
Download file list	TcDBSrv_InfoSysSamples.tszip, CurrentConfigDataBase.xml, TestDB_Cyclic.sdf

In this sample the cyclic log function is started or stopped by toggling the bStartStop variable.
The cyclic log process begins in response to a positive edge at the bExecute input.
A negative edge will end the process again.

Variable declaration (PRG data types)

PROGRAM DataTypes
VAR
    DBSrv_DT_INT     : INT;
    DBSrv_DT_UINT    : UINT;
    DBSrv_DT_DINT    : DINT;
    DBSrv_DT_UDINT   : UDINT;
    DBSrv_DT_REAL    : REAL;
    DBSrv_DT_LREAL   : LREAL;
    DBSrv_DT_BYTE    : BYTE := 16#A1;
    DBSrv_DT_BOOL    : BOOL;
    DBSrv_DT_MYSTRUCT: ST_MyStruct;
    DBSrv_DT_ARRAY   : ARRAY [0..19] OF UDINT;
    DBSrv_DT_WORD    : WORD;
    DBSrv_DT_DWORD   : DWORD;
END_VAR

ST_MyStruct structure

TYPE ST_MyStruct :
STRUCT
    iValue1 : INT;
    iValue2 : UINT;
    iValue3 : BOOL;
    iValue4 : REAL;
END_STRUCT
END_TYPE

Variable Declaration

PROGRAM MAIN
VAR
    fbDBCyclicRdWrt1: FB_DBCyclicRdWrt;

    bCyclic         : BOOL :=TRUE;

    bBusy_Cyclic    : BOOL;
    bErr            : BOOL;
    nErrID          : UDINT;
    sSQLState       : ST_DBSQLError;
END_VAR

PLC program

DataTypes;

fbDBCyclicRdWrt(
    sNetID   := ,
    bExecute := bCyclic,
    tTimeout := t#15s,
    bBusy     => bBusy_Cyclic,
    bError    => bErr,
    nErrID    => nErrID,
    sSQLState => sSQLState);

In order to use this sample, you only need to transfer the NetID of the ADS device (on which the TwinCAT Database Server is installed) to the sNetID input.
When you run the program and set the bCyclic variable to TRUE, all the variables that are declared in the symbol group of the XML configuration file are logged.

	TwinCAT Database Server All Microsoft SQL Compact databases, which are declared in the XML configuration file, must exist. They are not generated automatically. The declared ASCII files, on the other hand, are generated automatically if they do not exist.

Requirements

Development environment	Target platform	PLC libraries to be linked
TwinCAT v3.0.0	PC or CX (x86)	Tc2_Database
