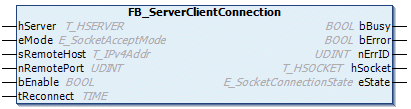

FB_ServerClientConnection

The function block FB_ServerClientConnection can be used to manage (establish or remove) a server connection. FB_ServerClientConnection simplifies the implementation of a server application by encapsulating the functionality of the three function blocks FB_SocketListen, FB_SocketAccept and FB_SocketClose internally. The integrated debugging output of the connection status facilitates troubleshooting in the event of configuration or communication errors. In addition, a minimum server application only requires an instance of the function block FB_SocketSend and/or an instance of the function block FB_SocketReceive.

In the first step a typical server application establishes the connection with the client via the FB_ServerClientConnection function block (more precisely, the server application accepts the incoming connection request). In the next step instances of FB_SocketSend and/or FB_SocketReceive can be used to exchange data with the server. When a connection is closed depends on the requirements of the application.

Inputs

VAR_INPUT
    eMode       : E_SocketAcceptMode := eACCEPT_ALL;
    sRemoteHost : T_IPv4Addr := '';
    nRemotePort : UDINT := 0;
    bEnable     : BOOL;
    tReconnect  : TIME := T#1s;
END_VAR

Name	Type	Description
eMode	E_SocketAcceptMode	Defines whether all or only certain connections are to be accepted.
sRemoteHost	T_IPv4Addr	IP address (Ipv4) in string form (e.g. '172.33.5.1') of the remote client whose connection is to be accepted. For a client on the local computer an empty string may be specified.
nRemotePort	UDINT	IP port number (e.g. 200) of the remote client whose connection is to be accepted.
bEnable	BOOL	As long as this input is TRUE, the system attempts to establish a new connection at regular intervals until a connection was established successfully. Once established, a connection can be closed again with FALSE.
tReconnect	TIME	Cycle time used by the function block to try to establish a connection.

Inputs/outputs

VAR_IN_OUT
    hServer     : T_HSERVER;
END_VAR

Name	Type	Description
hServer	hServer	Server handle. This input variable has to be initialized via the F_CreateServerHnd function.

Outputs

VAR_OUTPUT
    bBusy     : BOOL;
    bError    : BOOL;
    nErrID    : UDINT;
    hSocket   : T_HSOCKET;
    eState    : E_SocketConnectionState := eSOCKET_DISCONNECTED;
END_VAR

Name	Type	Description
bBusy	BOOL	TRUE, as long as the function block is active.
bError	BOOL	Becomes TRUE if an error code occurs.
nErrId	UDINT	If an bError output is set, this parameter returns the TwinCAT TCP/IP Connection Server error number.
hSocket	T_HSOCKET	Connection handle to the newly opened remote client socket. If successful, this variable is transferred to the instances of the function blocks FB_SocketSend and/or FB_SocketReceive.
eState	E_SocketConnectionState	Returns the current connection status.

Sample in FBD

The following sample illustrates initialization of a server handle variable. The server handle is then transferred to three instances of the FB_ServerClientConnection function block.

PROGRAM MAIN
VAR
    hServer             : T_HSERVER;
    bListen             : BOOL;

    fbServerConnection1 : FB_ServerClientConnection;
    bConnect1           : BOOL;
    bBusy1              : BOOL;
    bError1             : BOOL;
    nErrID1             : UDINT;
    hSocket1            : T_HSOCKET;
    eState1             : E_SocketConnectionState;

    fbServerConnection2 : FB_ServerClientConnection;
    bConnect2           : BOOL;
    bBusy2              : BOOL;
    bError2             : BOOL;
    nErrID2             : UDINT;
    hSocket2            : T_HSOCKET;
    eState2             : E_SocketConnectionState;

    fbServerConnection3 : FB_ServerClientConnection;
    bConnect3           : BOOL;
    bBusy3              : BOOL;
    bError3             : BOOL;
    nErrID3             : UDINT;
    hSocket3            : T_HSOCKET;
    eState3             : E_SocketConnectionState;
END_VAR

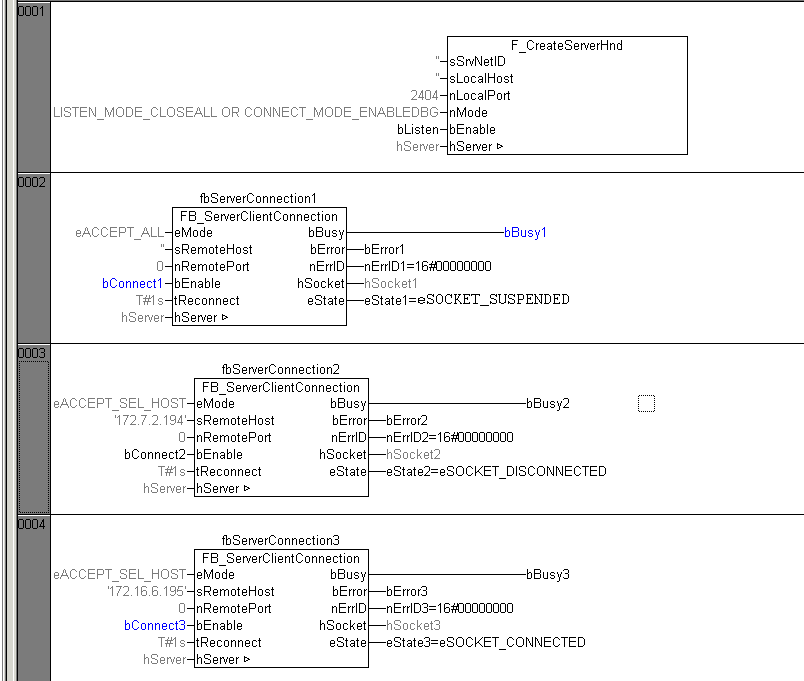

Online View:

The first connection is activated (bConnect1 = TRUE), but the connection has not yet been established (passive open).

The second connection has not yet been activated (bConnect2 = FALSE) (closed).

The third connection has been activated (bConnect3 = TRUE) and a connection to the remote client has been established.

Here you can find more application examples (and source code): Samples

Requirements

Development environment	Target system type	PLC libraries to include (category group)
TwinCAT v3.1.0	PC, or CX (x86, X64, Arm®)	Tc2_TcpIp (communication)
