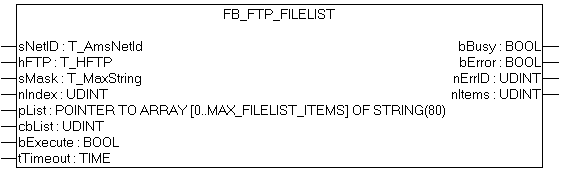

FB_FTP_FileList

File and folder names can be read or searched from the FTP server with the function block FB_FTP_FileList. This function block uses an already opened connection to an FTP server
Inputs
VAR_INPUT
sNetID : T_AmsNetId := '';
hFTP : T_HFTP;
sMask : T_MaxString:= '';
nIndex : UDINT;
pList : POINTER TO ARRAY [0..MAX_FILELIST_ITEMS] OF STRING(80);
cbList : UDINT;
bExecute: BOOL;
tTimeout: TIME := T#20s;
END_VAR
Name | Type | Description |
---|---|---|
sNetID | T_AmsNetId | A string containing the AMS network ID of the target device, at which the ADS command is directed. |
hFTP | T_HFTP | Handle of the FTP server. |
sMask | T_MaxString | Search mask to filter corresponding files: *.* Reads out all files. * Reads out all files and all folder names. *.txt Reads out all files with the extension "TXT". \Test\*.* Reads out all files from the Test subfolder. |
nIndex | UDINT | Specifies the index of the first filename to be read. |
pList | POINTER TO ARRAY | Specifies the address of the string array into which the filenames are to be written. |
cbList | UDINT | Indicates the size of the string array in bytes. |
bExecute | BOOL | The function block is executed with the rising edge. |
tTimeout | TIME | Indicates the timeout period. |
Outputs
VAR_OUTPUT
bBusy : BOOL;
bError: BOOL;
nErrID: UDINT;
nItems: UDINT;
END_VAR
Name | Type | Description |
---|---|---|
bBusy | BOOL | The command is in the process of being transmitted by ADS. No new command will be accepted as long as "bBusy" remains TRUE. |
bError | BOOL | Becomes TRUE, as soon as an error occurs. |
nErrID | UDINT | Returns the ADS error code if the bError output is set. |
nItems | UDINT | Returns the total number of file list entries. |
Requirements
Development Environment |
Target Platform |
PLC Libraries to include |
---|---|---|
TwinCAT v3.0 Build 3102 |
PC or CX (x86) |
Tc2_FTP |
