FB_FTP_Info

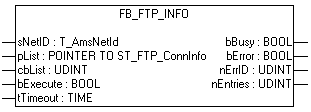

FB_FTP_Info 1:

Information about the created FTP server connections can be retrieved with the function block FB_FTP_Info.

FB_FTP_Info 2: Inputs

VAR_INPUT
sNetID   : T_AmsNetId:= '';
pList    : POINTER TO ST_FTP_ConnInfo;
cbList   : UDINT     := 0;
bExecute : BOOL;
tTimeout : TIME      := T#15s;
END_VAR

Name

Type

Description

sNetID

T_AmsNetId

A string containing the AMS network ID of the target device, at which the ADS command is directed.

pList

POINTER TO ST_FTP_ConnInfo

Pointer address to a variable of type ST_FTP_ConnInfo. This variable can also be an array of the type ST_FTP_ConnInfo.

cbList

UDINT

Length of the ST_FTP_ConnInfo instance

bExecute

BOOL

The function block is executed with the rising edge.

tTimeout

TIME

Indicates the duration of the timeout.

FB_FTP_Info 3: Outputs

VAR_OUTPUT
bBusy   : BOOL;
bError  : BOOL;
nErrID  : UDINT;
nEntries: UDINT;
END_VAR

Name

Type

Description

bBusy

BOOL

The command is in the process of being transmitted by ADS. No new command will be accepted as long as "bBusy" remains TRUE.

bError

BOOL

Becomes TRUE, as soon as an error occurs.

nErrID

UDINT

Returns the corresponding error code in the event of a set bError output.

nEntries

UDINT

Number of existing connections.

Requirements

Development Environment

Target Platform

PLC Libraries to include

TwinCAT v3.0 Build 3102

PC or CX (x86)

Tc2_FTP
