ADS-Read command

AmsNetId

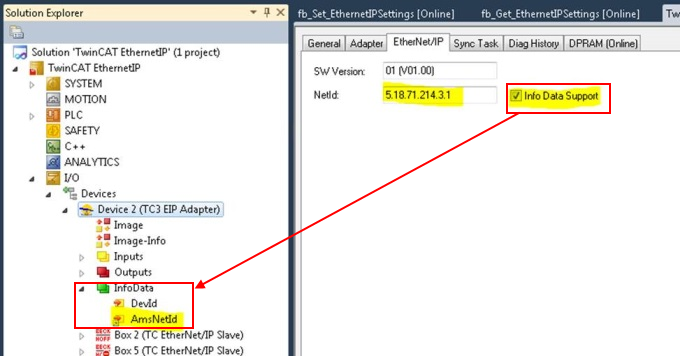

The AMSNetId can be found under the EtherNet/IP tab in the NetID field. When you select the option Info Data Support it is linked directly.

The advantage of a direct link is that it always retrieves the current AMSNETID, even if controllers are used that use different AMSNETIDs. The AMSNETID of the EtherNet/IP™ adapter therefore does not have to be read manually.

ADS port number

For the function “EtherNet/IP™ Adapter” set the ADS port number to a fixed value of 0xFFFF.
