ADS

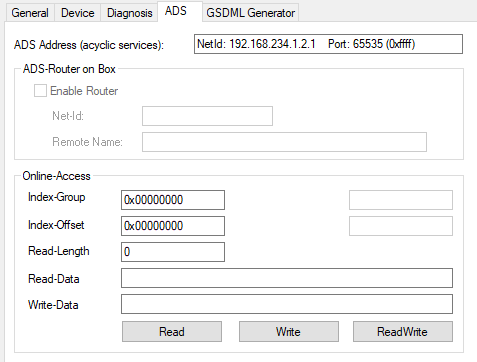

ADS messages can be sent directly from here. The NetId and the port are taken directly from the corresponding adapter.

A variety of PROFINET functions can be triggered via the correct settings for Index-Group and Index-Offset. This includes, for example, the setting of alarms or record data.

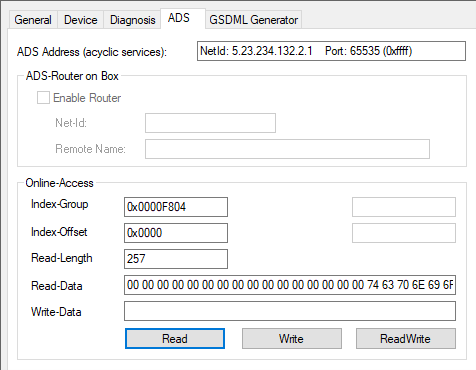

Example: Read PROFINET name and IP settings, see chapter Further diagnosis via ADS interface.
