DCF77

DCF77 1:

Using the sample programs

This document contains sample applications of our products for certain areas of application. The application notices provided here are based on typical features of our products and only serve as samples. The notices contained in this document explicitly do not refer to specific applications. The user is therefore responsible for assessing and deciding whether the product is suitable for a particular application. We accept no responsibility for the completeness and correctness of the source code contained in this document. We reserve the right to modify the content of this document at any time and accept no responsibility for errors and missing information.

Download: Tc3_Example_DCF77_externalSync.zip

Load the sample program (tnzip file/TwinCAT 3)

1. Save the ZIP archive locally on your hard disk and extract the file.
2. Open TwinCAT 3 Engineering.

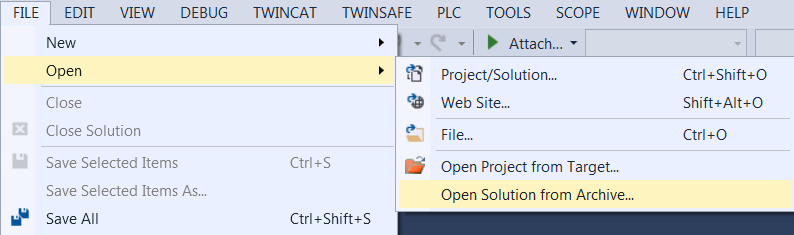

3. In the File > Open menu, select the command Open Solution from Archive.
DCF77 2:
4. In the Open dialog that opens, select the previously unpacked .tnzip file (sample program) and confirm the dialog with Open.
The Select folder for new solution selection window opens.
5. Select a destination directory for saving the project and confirm the dialog with Select folder.
The Tc3_EtherCATExtSyncSample solution is loaded.

Further information on the general procedure for commissioning the PLC or starting the program can be found in the terminal documentation and in the EtherCAT System Documentation.
