Setup OPC XML-DA on Windows XP

All necessary files for OPC XML-DA will be automatically installed by the setup routine. This chapter describes the required IIS (Internet Information Services) configuration for OPC XML DA on Windows XP

Please note: The configuration may be different in other Windows Operating Systems, for example Windows 7.

Step 1: Create "Virtual Directory" in IIS (Internet Information Service)

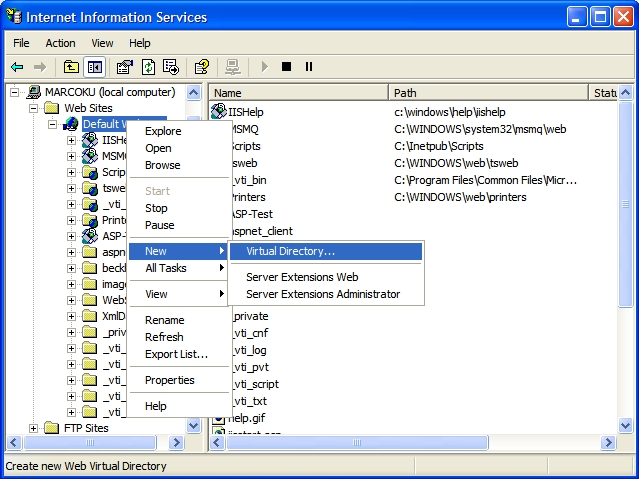

Open "Internet Information Services" (under "Control Panel/Administrative Tools/").
Right click on "Default Web Site"
Select "New" and "Virtual Directory..."

Setup OPC XML-DA on Windows XP 1:

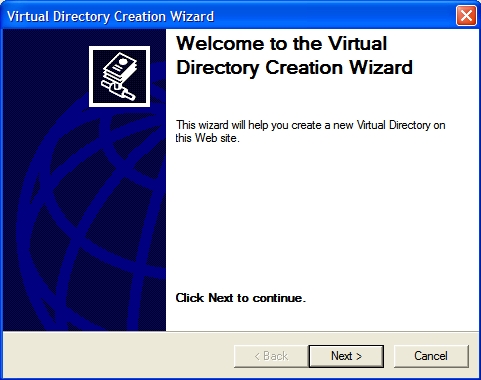

Everybody is welcome, so just click next.

Setup OPC XML-DA on Windows XP 2:

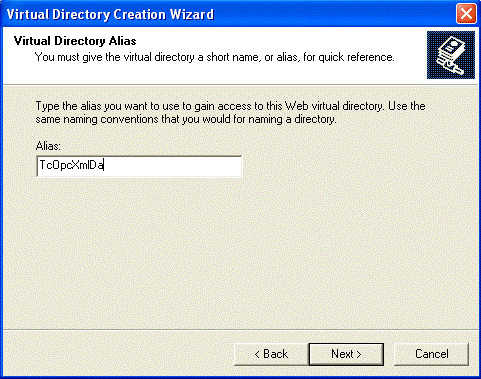

Please enter the alias "TcOpcXmlDa" and click "Next"

Setup OPC XML-DA on Windows XP 3:

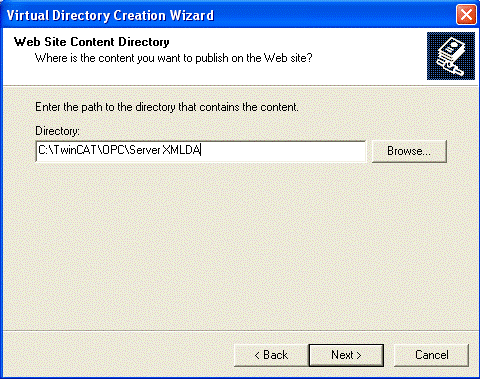

With "Browse..." you have to specify the folder which contains the TwinCAT OPC Xml DA Server. By default the folder should be like "C:\TwinCAT\OPC\Server XMLDA". Select "Next" to proceed.

Setup OPC XML-DA on Windows XP 4:

Check options "Read", "Run scripts" and "Execute" and click "Next".

Setup OPC XML-DA on Windows XP 5:

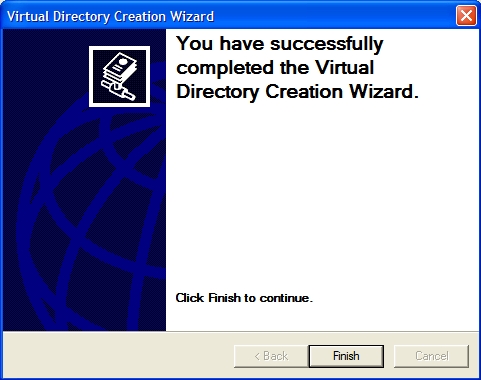

Select "Finish" to finish the configuration of TwinCAT OPC XML DA Server.

Setup OPC XML-DA on Windows XP 6:

Step 2 : Testing the configuration

The URL of the OPC-XML-DA server on the PC system can be checked locally or from a remote PC: In both cases open the Internet explorer and enter the URL of the OPC Server XML DA on PC system like :
http://<ip-adress or name of PC device>/tcopcxmlda/tcopcxmlda.dll

Sample :
http://192.16.17.5/tcopcxmlda/tcopcxmlda.dll
or
http://localhost/tcopcxmlda/tcopcxmlda.dll

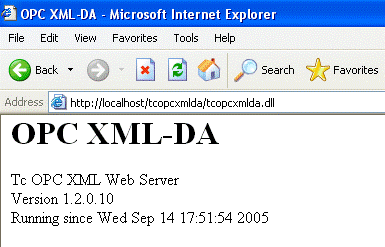

The TcOpcXmlDa server will reply with a status page containing the product version :

Setup OPC XML-DA on Windows XP 7:

Please note:
In case of problems (like receiving no HTML status data) please check if a proxy server is activated on your host PC. After deactivating the proxy and reloading the URL the Opc XML DA server should reply with status info.
