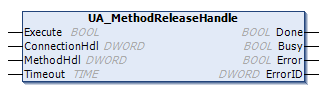

UA_MethodReleaseHandle

This function block releases the specified method handle.

Inputs

VAR_INPUT
    Execute           : BOOL;
    ConnectionHdl     : DWORD;
    MethodHdl         : DWORD;
    Timeout           : TIME := DEFAULT_ADS_TIMEOUT;
END_VAR

Name	Type	Description
Execute	BOOL	The command is triggered by a rising edge at this input.
ConnectionHdl	DWORD	Connection handle previously output by the function block UA_Connect.
MethodHdl	DWORD	Method handle previously output by the function block UA_MethodGetHandle.
Timeout	TIME	Time until the function is aborted. DEFAULT_ADS_TIMEOUT is a global constant, set to 5 seconds.

Outputs

VAR_OUTPUT
    Done     : BOOL;
    Busy     : BOOL;
    Error    : BOOL;
    ErrorID  : UDINT;
END_VAR

Name	Type	Description
Done	BOOL	Switches to TRUE if the function block was executed successfully.
Busy	BOOL	TRUE until the function block has executed a command, at the most for the duration of the "Timeout" at the input. The inputs accept no new command as long as Busy = TRUE. It is not the connection time that is monitored but the reception time.
Error	BOOL	Switches to TRUE if an error occurs while executing a command. The command-specific error code is contained in nErrID.
ErrorID	UDINT	Contains the command-specific ADS error code of the most recently executed command.

Requirements

Development environment	Target platform	PLC libraries to include
TwinCAT 3.1	Win32, Win64, CE-X86, CE-Arm®	Tc3_PLCopen_OpcUa
