Programming Example

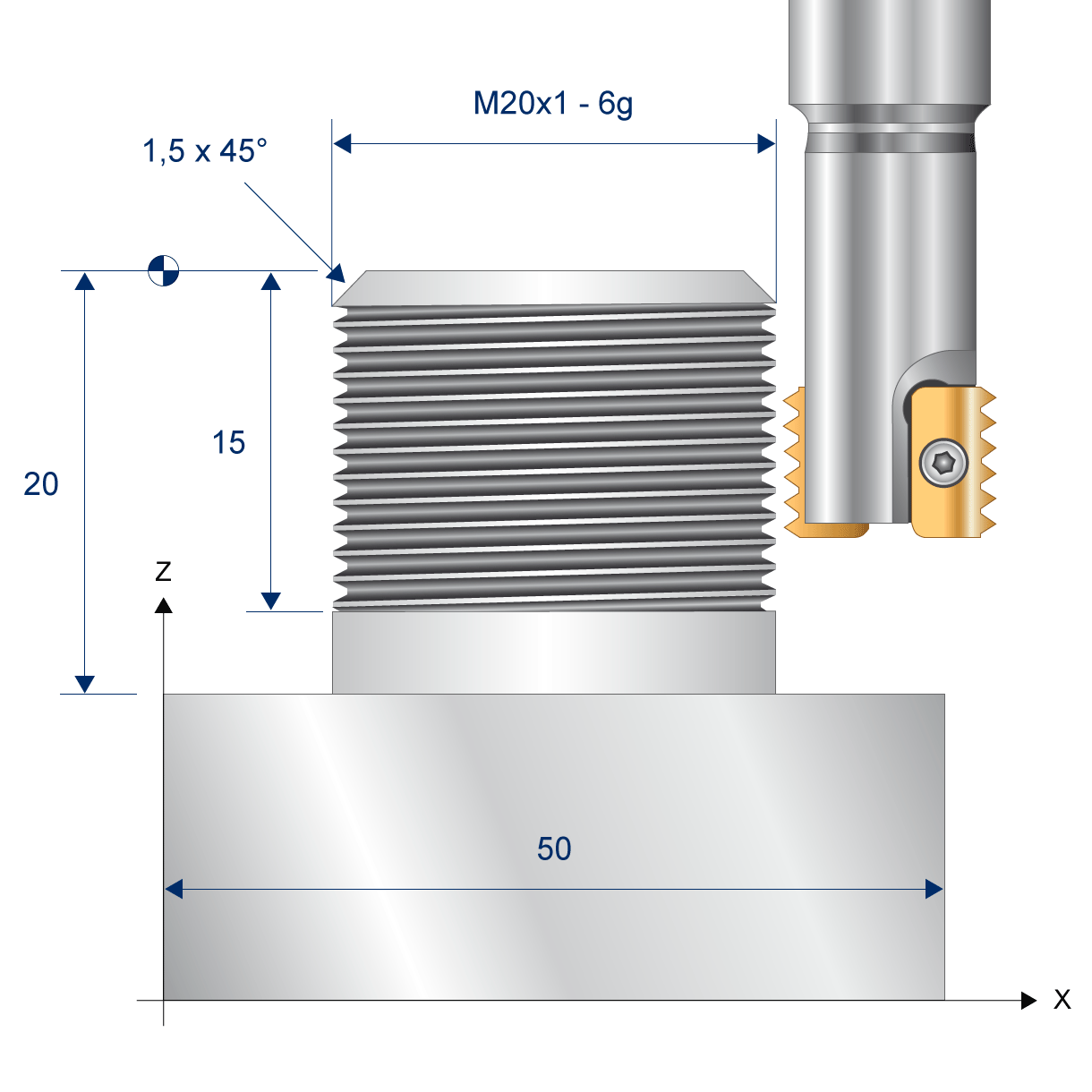

Thread milling


; Thread milling
T4 D4                         (Tool data)
M6                            (Tool change)
G17 G90 G54 F500 M03 S1200    (Technology data)
G00 Z50                       (Go to z start position)
G00 X50 Y50   (position near workpiece mill tool is outside the part)

#VAR
  ; input parameters:
  V.L.SurfacePosition     = 0   (Z position of workpiece surface)
  V.L.RetractionPlane     = 20  (Z position of retraction plane)
  V.L.SafetyClearance     = 4   (rel. value of safety clearance in Z)
  V.L.DepthOfThread       = -15 (depth of thread)
  V.L.MaxIncrementXY      = 0.5 (maximal increment in XY)
  V.L.ThreadPitch         = 1   (pitch of the thread)
  V.L.FinishingOffsetXY   = 0.2 (finishing offset in XY)
  V.L.MachiningMode       = 3   (machining mode)
  V.L.ToolTyp             = 3   (tool type)
  V.L.ThreadDiameter      = 20  (diameter of the thread)
#ENDVAR

L CYCLE [NAME=SysMillThread.ecy  \
    @P1  = V.L.SurfacePosition   \
    @P2  = V.L.RetractionPlane   \
    @P3  = V.L.SafetyClearance   \
    @P4  = V.L.DepthOfThread     \
    @P6  = V.L.MaxIncrementXY    \
    @P7  = V.L.ThreadPitch       \
    @P16 = V.L.FinishingOffsetXY \
    @P31 = V.L.MachiningMode     \
    @P63 = V.L.ToolTyp           \
    @P68 = V.L.ThreadDiameter    \
    ]

G00 Z100
M05
M30
Programming example 1:
