Creating an object for online tool radius compensation

The procedure below is an example of creating a user-defined online tool radius compensation object using Visual Studio 2019,

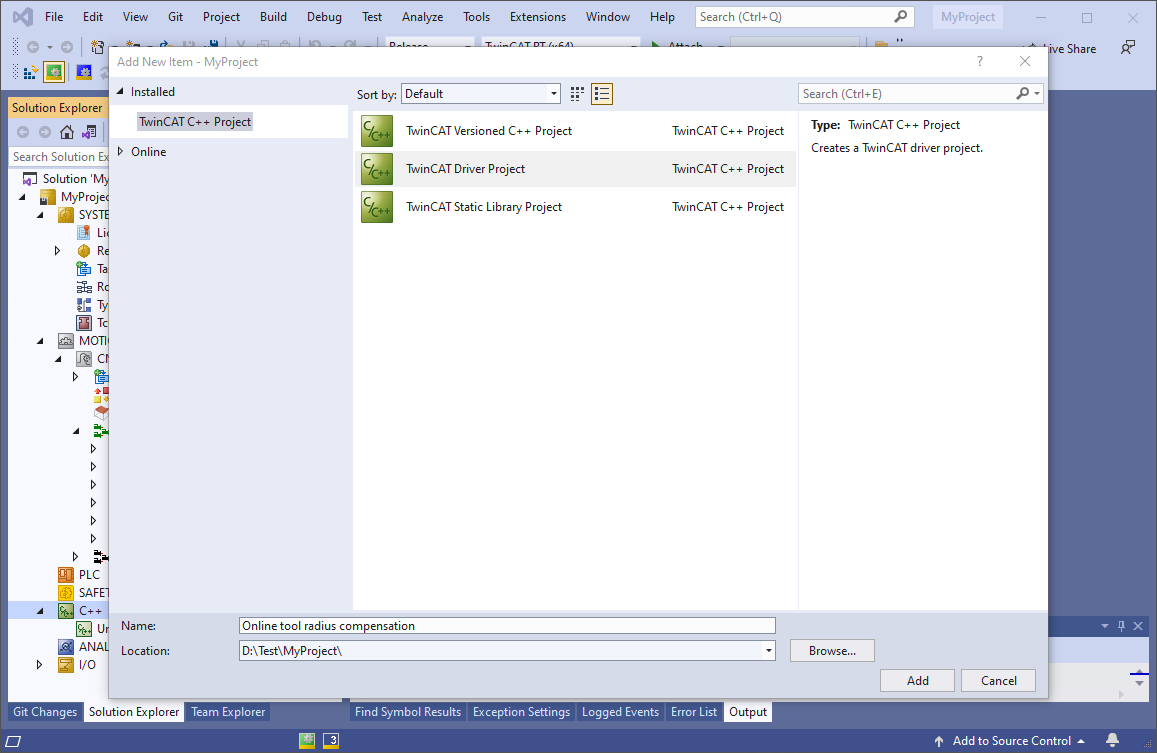

Creating an object for online tool radius compensation 1:
Driver project for online tool radius compensation

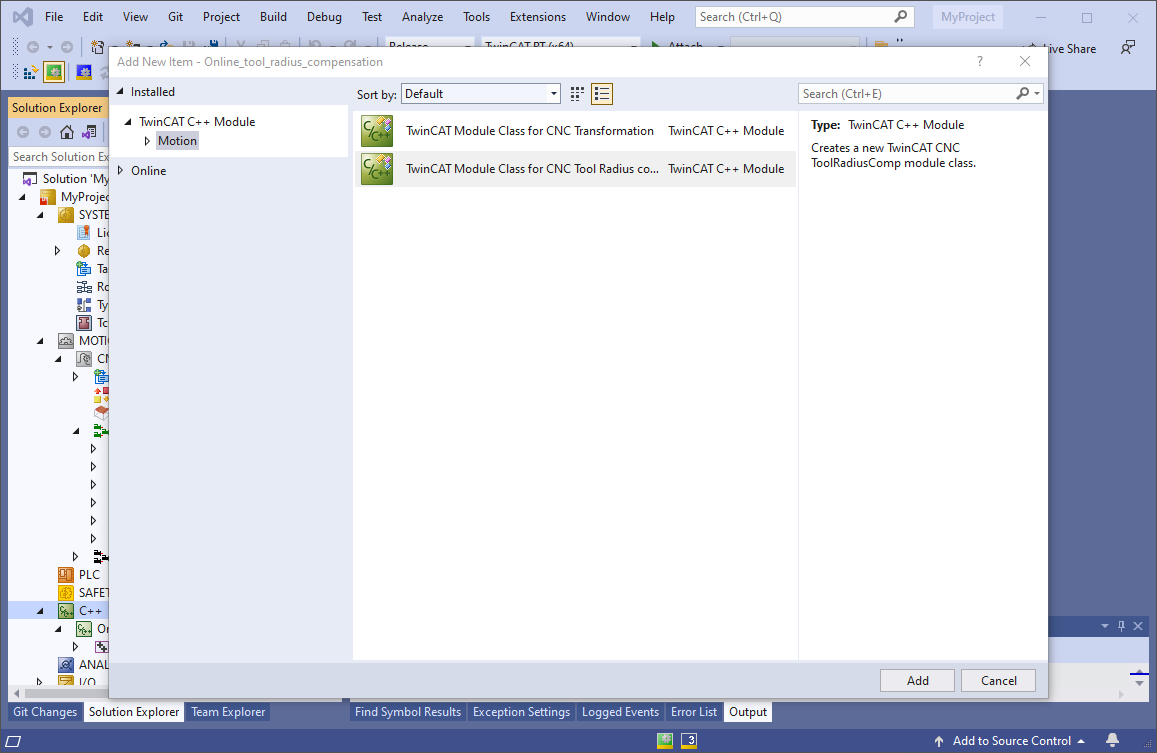

Creating an object for online tool radius compensation 2:
Define transformation class

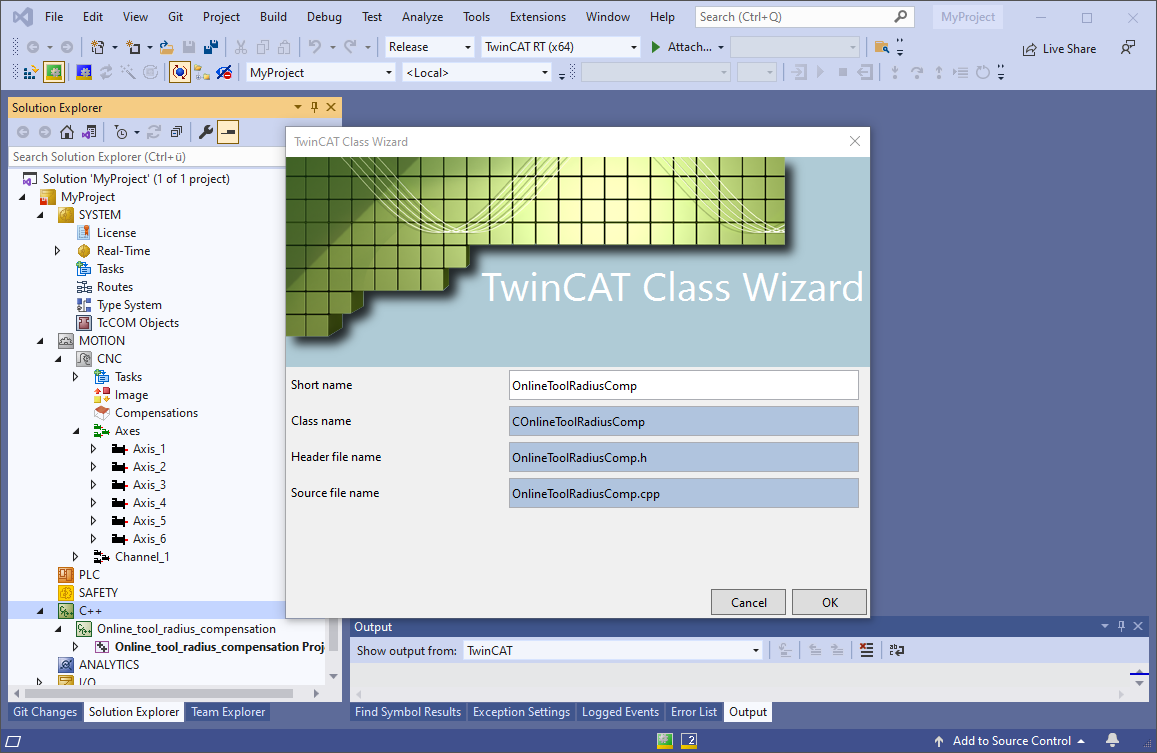

Creating an object for online tool radius compensation 3:
Name transformation class

Right-click on the project to “Create” the driver.

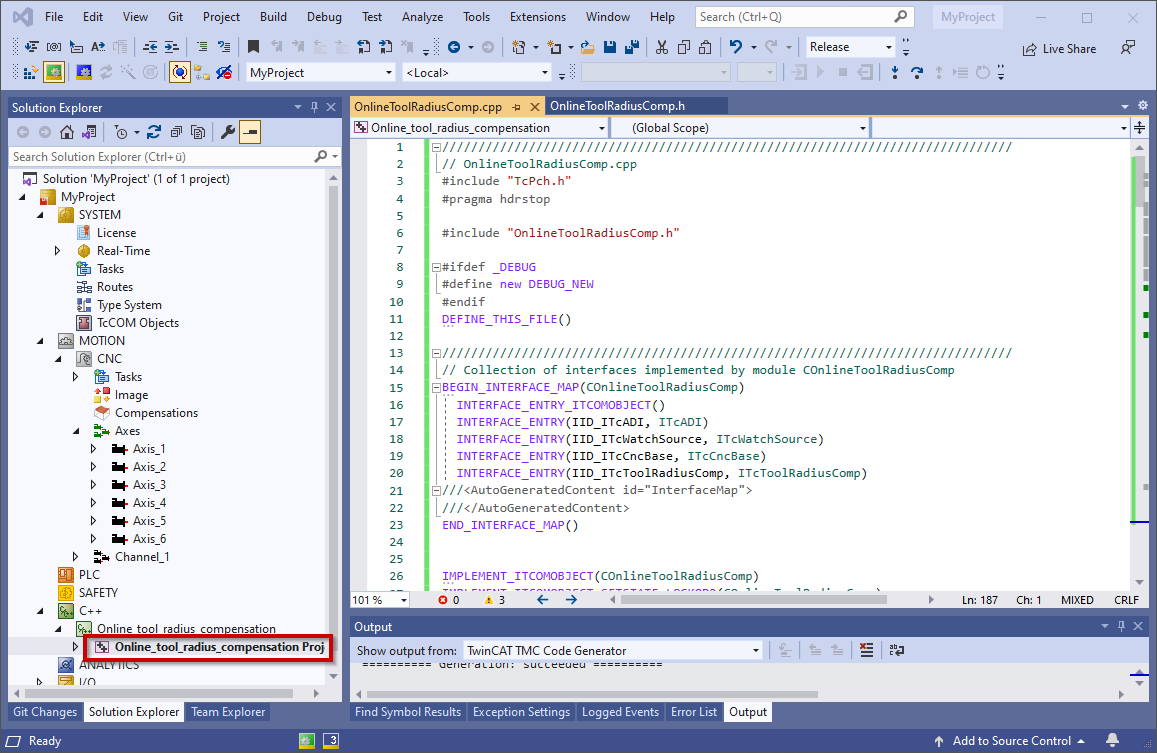

Creating an object for online tool radius compensation 4:
Create driver
