SURFACE and five-axis machining

Programming Example

Surface

%L uprg_secant

N010 #HSC ON[SURFACE PATH_DEV 0.1]

N020 #SLOPE [TYPE=HSC]

N030 P5 = 80 ( radius )

N040 P3 = 64 ( number of interpolation points )

N050 P4 = 360/P3 ( angle gradations )

N060 G01 X-P5 F20

N070 X0

N080 $FOR P1=1, P3, 1

N090 P2=P1*P4 F20

N100 X=P5*SIN[P2] Y=P5*[1.0-COS[P2]] C[-90+P2]

N110 $ENDFOR

N120 XP5

N130 M29

%Main

N140 #KIN ID[9]

N150 #TRAFO ON

N160 A90 C-90

N170 LL uprg_secant

N180 #TRAFO OFF

N190 M30

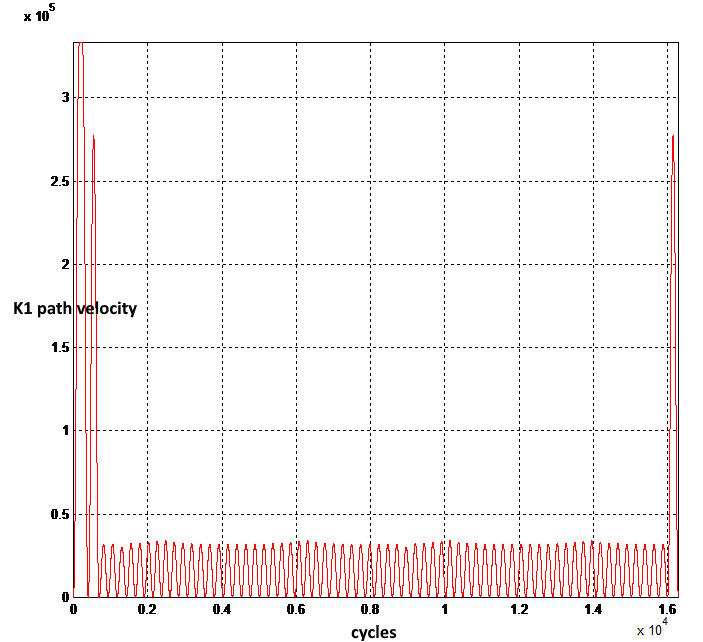

SURFACE and five-axis machining 1: — Path velocity with linear blocks and perpendicularly oriented tool

The feed rate fluctuates significantly due to the inconsistency of the rotary axis.

SURFACE and five-axis machining 2: — Path velocity with spline curve and perpendicularly oriented tool

When the spline function is enabled, the path velocity is constant. The programmed path velocity cannot be reached due to the limited rotation speed of the orientation axis. In addition, since the motion part of the rotary axis cannot change due to the constant contour curvature, the velocity level on the path can be kept constant.
