Deleting and removing coordinate system links (#CS DEL)

Syntax of Deleting and removing a CS stack:

#CS DEL

When #CS DEL is programmed, the topmost CS in a CS stack is always deleted. When an active CS (#CS SELECT) is deleted, the new topmost CS automatically becomes the active CS.

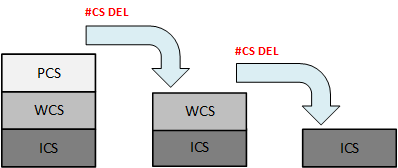

Deleting and removing coordinate system links (#CS DEL) 1:
Delete a CS with #CS DEL

A CS stack can be deleted either steop by step with #CS DEL or in one step with:

#CS DEL ALL

This command deletes all CS’s. Any MCS present becomes the active CS.

Deleting and removing coordinate system links (#CS DEL) 2:
Delete all CS’s with # CS DEL ALL

Programming Example

Delete with #CS DEL and #CS DEL ALL based on a CS stack with subordinate MCS.

:
N10 #CS ADD [ICS] [10,10,0,0,0,45]
N20 #CS ADD [WCS] [15,20,0,0,0,0]
N30 #CS ADD [PCS] [10,15,0,0,0,5]
:
N60 #CS SELECT [WCS]   ;Active CS link MCS-ICS-WCS
:
N80 #CS DEL       ;Delete PCS; WCS becomes topmost CS
                  ;Active CS link MCS-ICS-WCS
N90 #CS DEL       ;Delete WCS; active CS link MCS-ICS
:
or alternatively
N80 #CS DEL ALL   ;Delete all CS’s, MCS becomes topmost active CS
:
Nxx M30
