Example of limitation by acceleration

Programming Example

Limitation by acceleration

%L sub_mv

N1000 G01 G90 Y100 F500

N2000 Y-100

M29

%osc_7

N10 X[OSC ON 1ST_POS=-120 2ND_POS=120 FREQ=0.6]

N20 LL sub_mv

N30 X[OSC OFF]

N180 M30

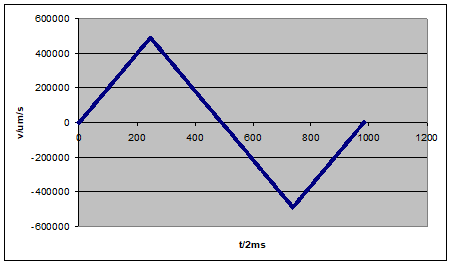

Example of limitation by acceleration 1: — Limited oscillating frequency due to axis acceleration

A full oscillation requires 1.964 s. The required 1.666 s (approx. 833 cycles) are therefore not possible with the dynamic characteristics listed above due to the oscillating frequency of 0.6 Hz.
