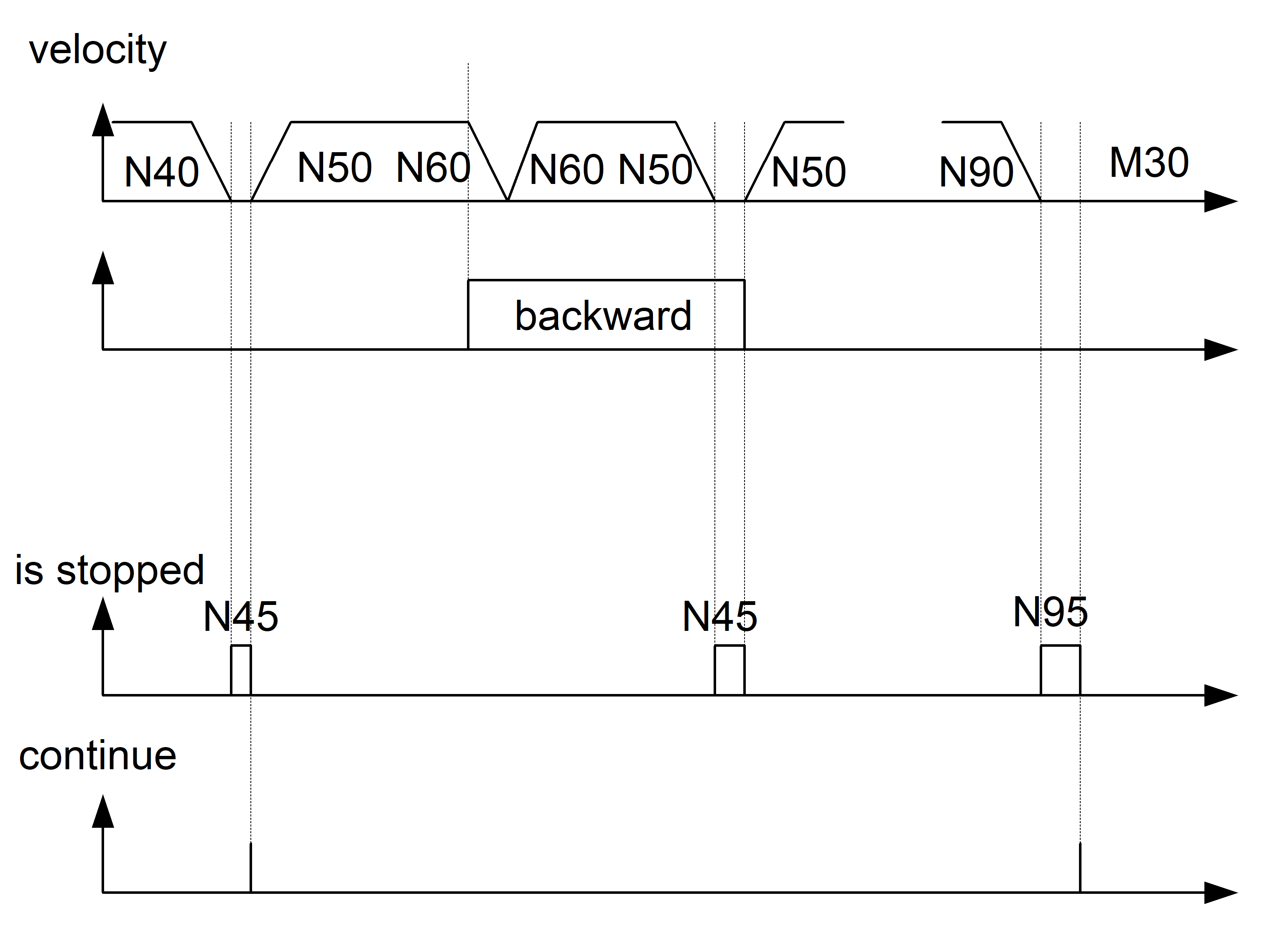

Example 1: Reversible stop
If the stop condition N45 is acknowledged once in the next NC program, only a forward/backward motion can be executed in the N50 - N90 range without the need for a further acknowledgement.
Channel Parameter
forward_backward.disable_stop_backward 0
forward_backward.disable_stop_2nd_forward 0
forward_backward.disable_stop_1st_forward 0
NC program:
%stop_reversible
N01 X0 Y0 Z0
N10 X100
N20 Y100
N30 X0
N40 Y0
N45 #STOP REVERSIBLE
N50 X0 Y0 Z0
N60 X100
N70 Y100
N80 X0
N90 Y0
N95 #STOP REVERSIBLE
M30
