Examples

The following 2 examples show the assignment of P-CHAN-00031 and P-CHAN-00050.

kind_of_2nd_ecs_ax

X

mach_plane_of_2nd_ecs_ax

XY

Examples 1:

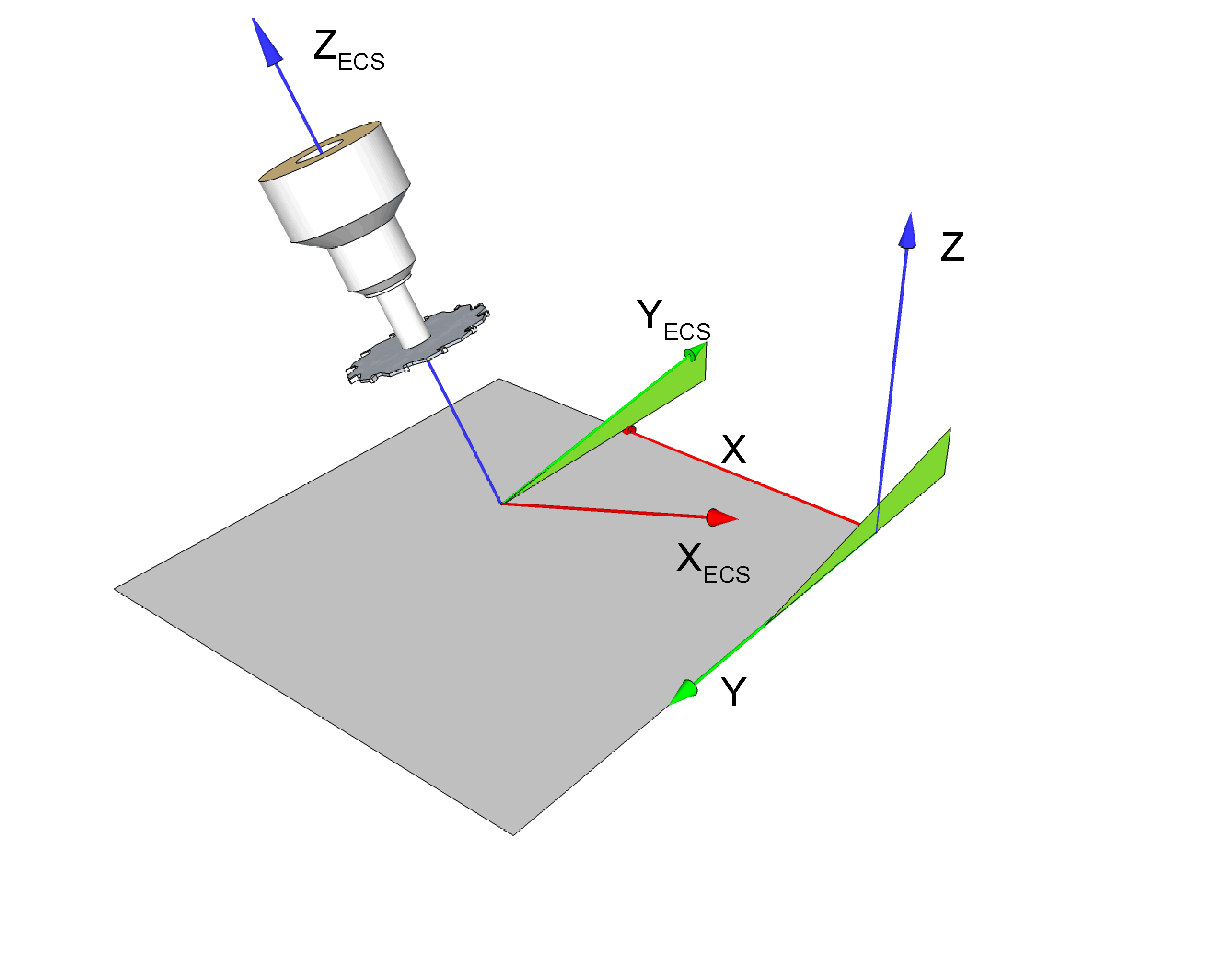

Definition of effector coordinate system (ECS) via the X axis

kind_of_2nd_ecs_ax

Y

mach_plane_of_2nd_ecs_ax

YZ

Examples 2:

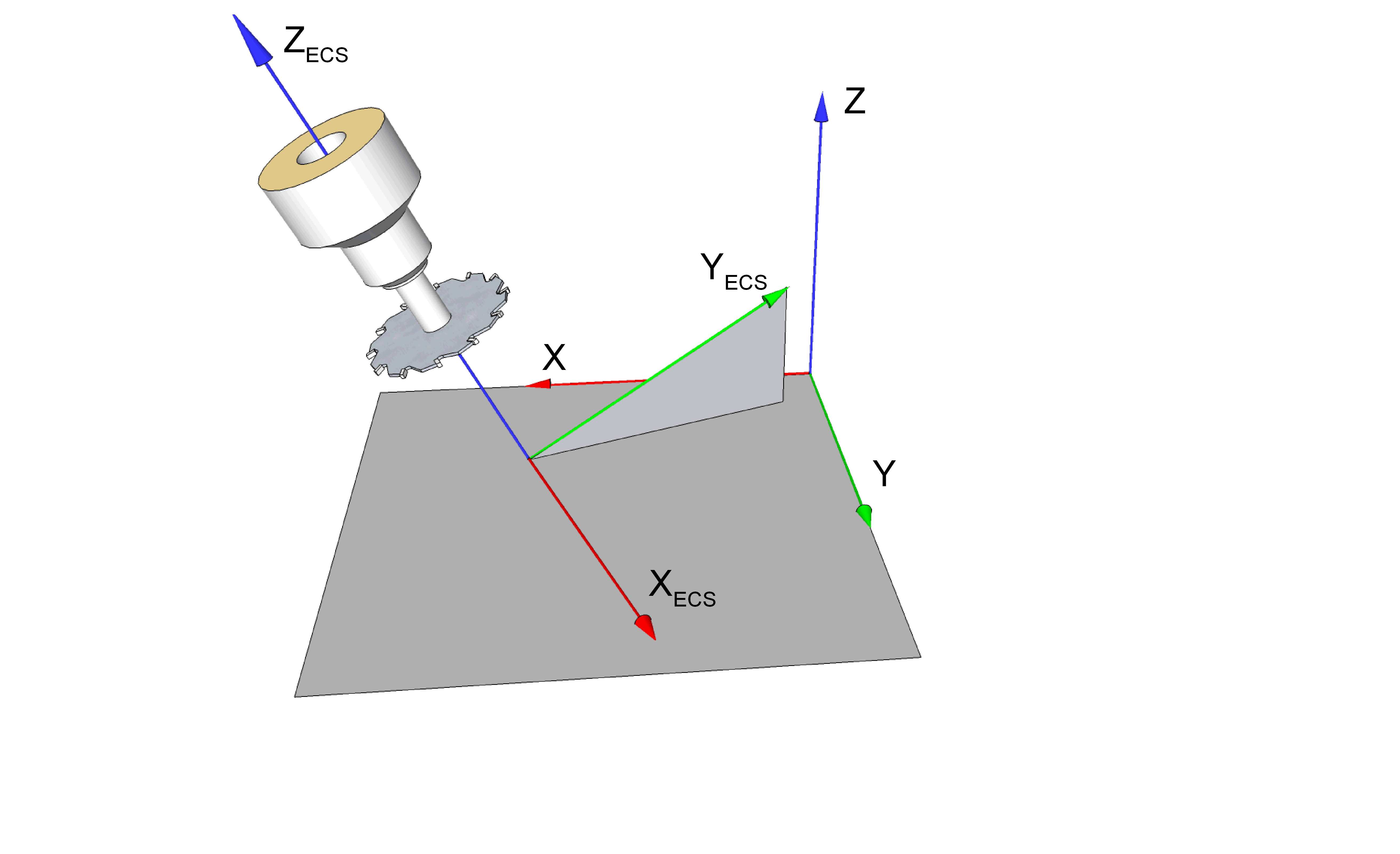

Definition of effector coordinate system (ECS) via the Y axis
