Specify block counter

Block counter

Block search type = 3, block counter = 100

Start program

Program is executed up to continuation position. NBC waits for continue. After continuation, the residual part of the square is traversed.

Programming Example

                   Block counter = BC
%t_sv_count.nc                   1
N00 G00 G90 X2 Y2                2
P1 = 0                           3
N80  G01 G91 X10 F500            4
N095     Y10                     5
                                 6
$FOR P1 = 1, 5, 1                7,  9, 11, 13, 15
N100     X-2                     8, 10, 12, 14, 16
$ENDFOR                          17
                                 18
N120  Y-10                       19
N130 M30                         20



Block counter (BC) = 8

Block counter (BC) = 16

Specify block counter 1:Block search active



Specify block counter 2:Real axis motion



Axis motion at program start position and continuation position is not marked

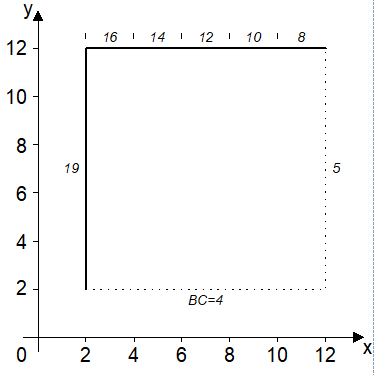

Specify block counter 3:

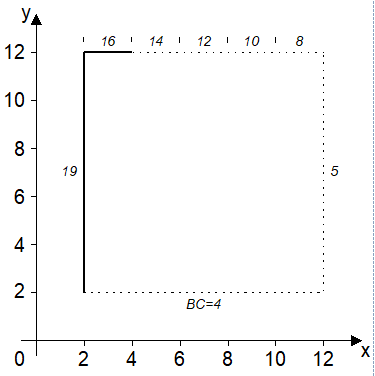

Specify block counter 4:
