Installation

TwinCAT Package Manager: Installation (TwinCAT 3.1 Build 4026)

Detailed instructions on installing products can be found in the chapter Installing workloads in the TwinCAT 3.1 Build 4026 installation instructions.

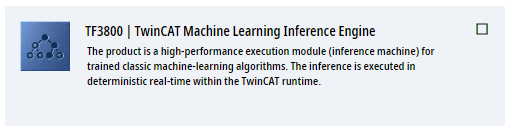

Install the following workload to be able to use the product:

Installation 1:

Command line:
tcpkg install TF3800.MachineLearningInferenceEngine.XAE
tcpkg install TF3800.MachineLearningInferenceEngine.XAR

Installation 2:

Command line:
tcpkg install TF3810.NeuralNetworkInferenceEngine.XAE
tcpkg install TF3810.NeuralNetworkInferenceEngine.XAR

Installation 3:

Command line:
tcpkg install TF38xx.MachineLearningModelManager.XAE

Setup installation (TwinCAT 3.1 Build 4024)

The following section describes how to install the TwinCAT 3 function for Windows-based operating systems.

The TwinCAT 3 function setup file was downloaded from the Beckhoff website.
1. Run the setup file as administrator. To do this, select the Run As Admin command in the context menu of the file.
The installation dialog opens.

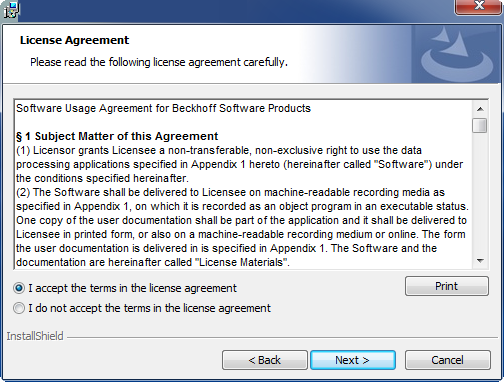

2. Accept the end user licensing agreement and click Next.
Installation 4:

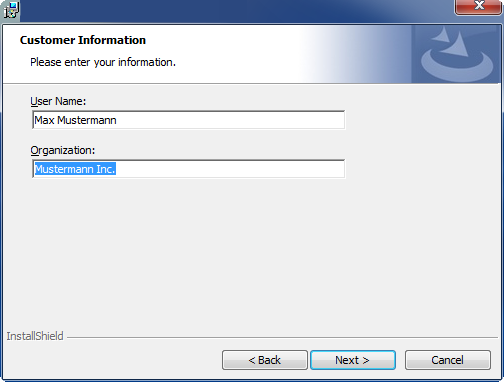

3. Enter your user data.
Installation 5:
4. If you want to install the full version of the TwinCAT 3 function, select Complete as the installation type. If you want to install the TwinCAT 3 function components separately, select Custom.
Installation 6:

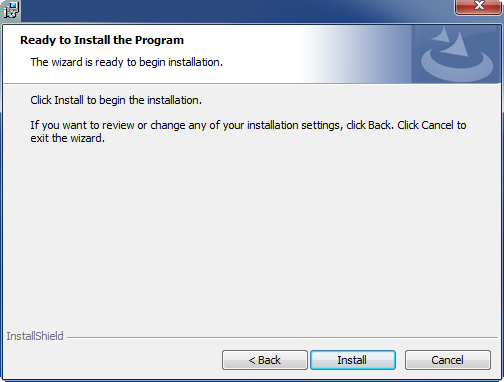

5. Click Next, then Install to start the installation.
Installation 7:

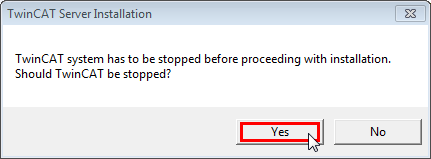

A dialog box informs you that the TwinCAT system must be stopped to proceed with the installation.
6. Confirm the dialog with Yes.
Installation 8:

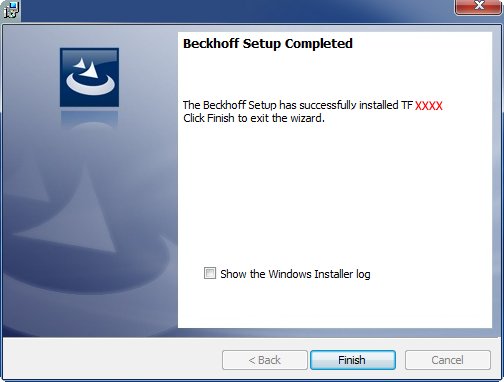

7. Click Finish to exit the setup.
Installation 9:
The TwinCAT 3 function has been installed successfully.
