Return codes
Return codes of the ipResultMessage.

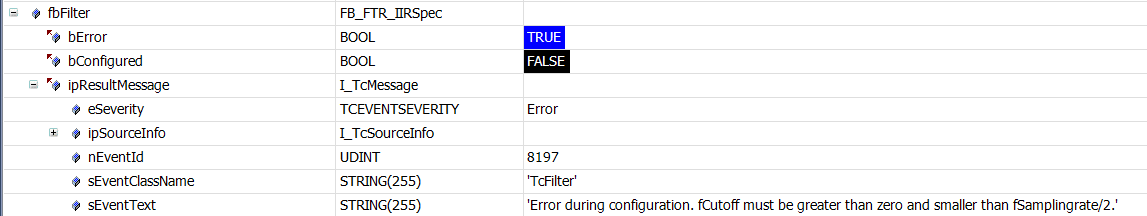

Online Watch:
Defined events:
nEventId (hex) | sEventText |
|---|---|
16#1001 | Error during initialization. No router memory available. Check size of router memory. |
16#1002 | Error during access to object archive. |
16#1004 | Error in Transition PREOP->SAFEOP. |
16#1005 | Error in Transition SAFEOP->OP |
16#1006 | Error in Transition SAFEOP->OP: No Task assigned. Module will not be executed cyclically. |
16#1007 | Error in Transition OP->SAFEOP |
16#1008 | Error in Transition SAFEOP->PREOP |
16#2001 | Error during configuration. A nullpointer has been allocated. |
16#2002 | Error during configuration. A nullpointer has been allocated. |
16#2003 | Error during configuration. fT1 must be greater than zero. |
16#2004 | Error during configuration. fSamplingrate must be greater than zero. |
16#2005 | Error during configuration. fCutoff must be greater than zero and smaller than fSamplingrate/2. |
16#2006 | Error during configuration. fBandwidth must be greater than zero and smaller than fSamplingrate/2 - fCutoff. |
16#2007 | Error during configuration. fPassBandRipple must be greater than zero. |
16#2008 | Error during configuration. fStopBandRipple must be greater than zero. |
16#2009 | Error during configuration. nChannels must be greater than zero and smaller than 101. |
16#200A | Error during configuration. nOversamples must be greater than zero. |
16#200B | Error during configuration. nFilterOrder has to be between 1 and 10/20 (band pass and band stop/ low pass and high pass) |
16#200C | Error during configuration. nCoefficientArraySize_A and nCoefficientArraySize_B must be equal and greater than seven. |
16#200D | Error during configuration. pCoefficientArrayAdr_A is an invalid pointer. |
16#200E | Error during configuration. A0 coefficient cant be zero due zero devision. |
16#200F | Error during configuration. pCoefficientArrayAdr_B is an invalid pointer. |
16#2010 | Error during configuration. fKp must be greater than zero. |
16#2011 | Error during configuration. nSamplesToFilter must be greater than zero. |
16#2012 | Error during configuration. fT2 must be greater than zero. |
16#2013 | Error during configuration. fT3 must be greater than zero. |
16#2014 | Error during configuration.nOrder must be greater than zero and smaller than eleven. |
16#2015 | Error during configuration. nInitialValuesSize must be 0, 8, (OrderB+OrderA)*8 or (OrderB+OrderA)*nChannels*8. |
16#2016 | Error during configuration. Invalid FilterName. |
16#2017 | Error during configuration. Invalid FilterType. |
16#2018 | Error during configuration. bReset = false is only allowed if the following filter structure member don’t change: nCoefficientArraySize_A, nCoefficientArraySize_B, nChannels and nOversamples. |
16#2019 | Error during configuration. nCoefficientArraySize_Sos must be a multiple of 48. |
16#201A | Error during configuration. pCoefficientArrayAdr_Sos is an invalid pointer. |
16#201B | Error during configuration. Filter parameter lead to an unstable filter, please choose other filter parameter. |
16#201C | Error during configuration. bReset = false is only allowed if the following filter structure member don’t change: nCoefficientArraySize_Sos, nChannels and nOversamples. |
16#201D | Error during configuration. nInitialValuesSize must be 0, 8, (number of biquads)*4*8 or (number of biquads)*4*nChannels*8. |
16#201E | Error during configuration. fNotchfrequency must be greater than zero and smaller than fSamplingrate/2. |
16#201F | Error during configuration. fQ must be greater than zero. |
16#2020 | Error during configuration. fTheta must be greater than zero. |
16#2021 | Error during configuration. fTt must be greater than zero and a multiple of 1/fSamplingRate. |
16#2022 | Error during configuration. fDeltaMax must be equal or greater than zero. |
16#3001 | Error during runtime. No router memory available. Check size of router memory. |
16#3002 | Error during runtime. Missing configuration. |
16#3003 | Error during runtime. Cyclic caller is assigned. Methods can not be called. |
16#3004 | Error during runtime. Size of fIn Array doesnt match with nOversamples*nChannels. |
16#3005 | Error during runtime. Size of fOut Array cant be smaller than fIn Array Size. |
16#3006 | Error during runtime. A nullpointer has been allocated @ pIn. |
16#3007 | Error during runtime. A nullpointer has been allocated @ pOut. |
