Eventbased

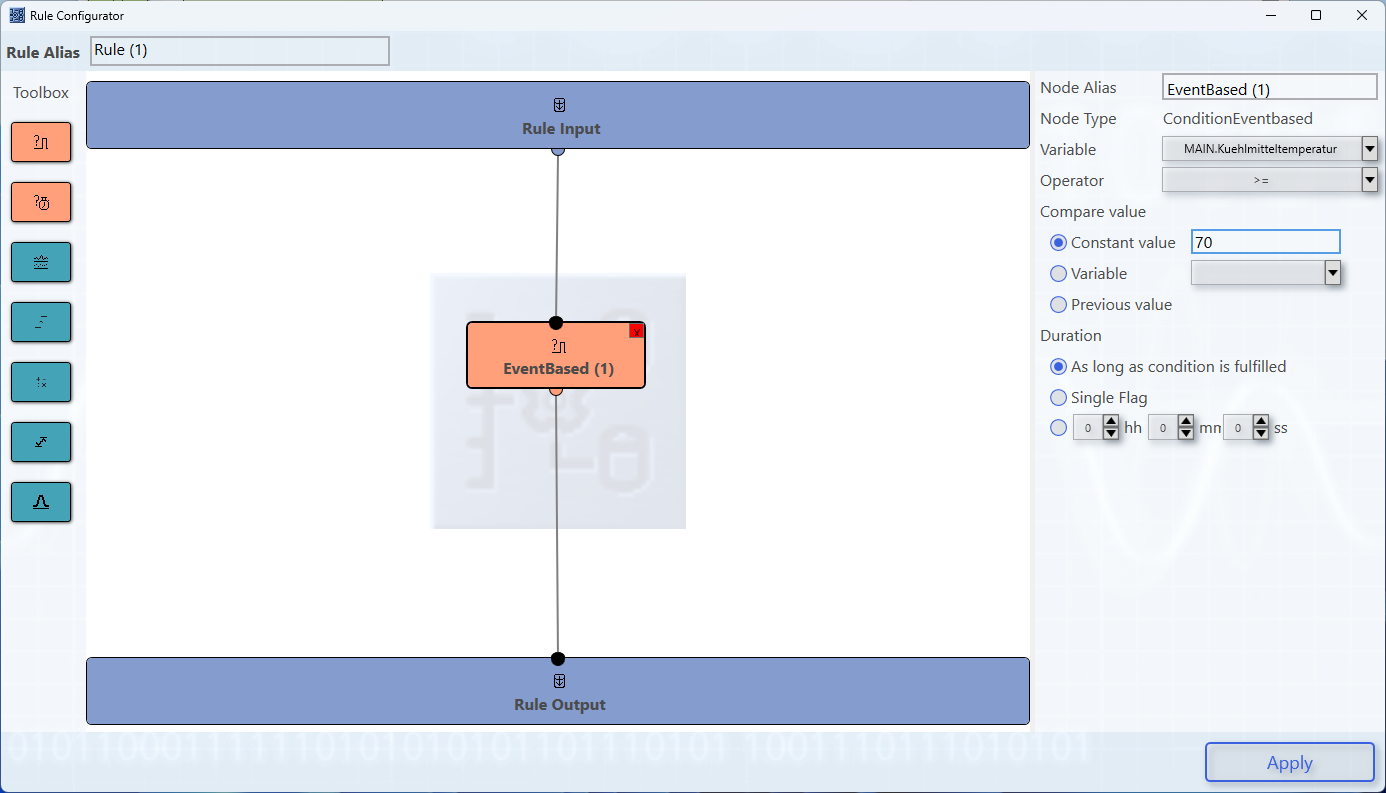

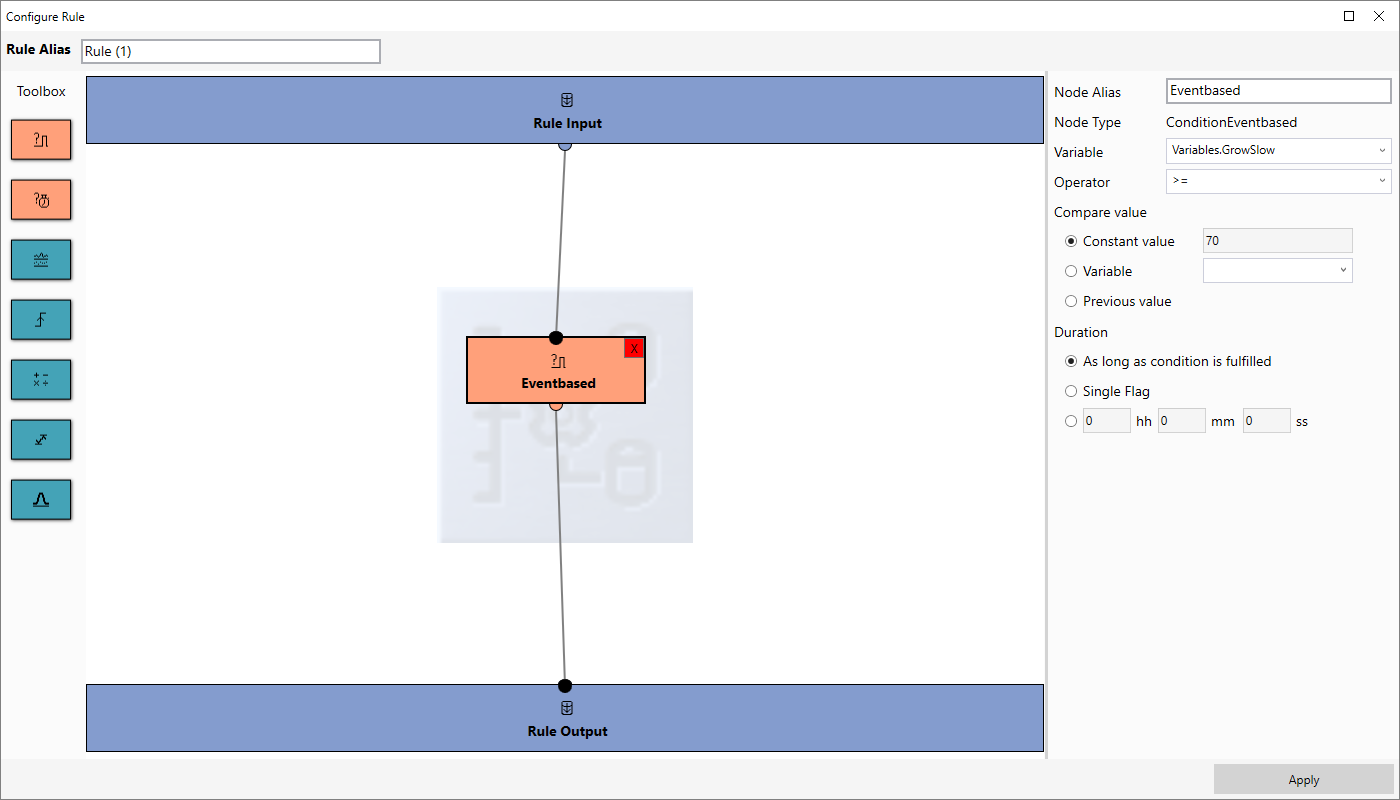

The EventBased-Condition can be used to filter for data within the data where a specific event must have occurred. The following configurations can be made:

• Variable: Selection of the variables to which the condition must apply.
• Operator: Selection of the operator for the condition
• Compare value: Selection of the comparison value
• Constant value: Comparison with a constant value
• Variable: Comparison with another variable
• Previous value: Comparison with the previous value of the selected variable.
• Duration: Selection of how long the data should be forwarded once the condition is fulfilled.
• As long as condition is fulfilled: The data is forwarded as long as the condition is fulfilled.
• Single Flag: The data is forwarded once when the condition is fulfilled, i.e. as with a rising edge.
• Alternatively, the data can also be forwarded for a specific time, which can be configured manually.
