Editing recordings

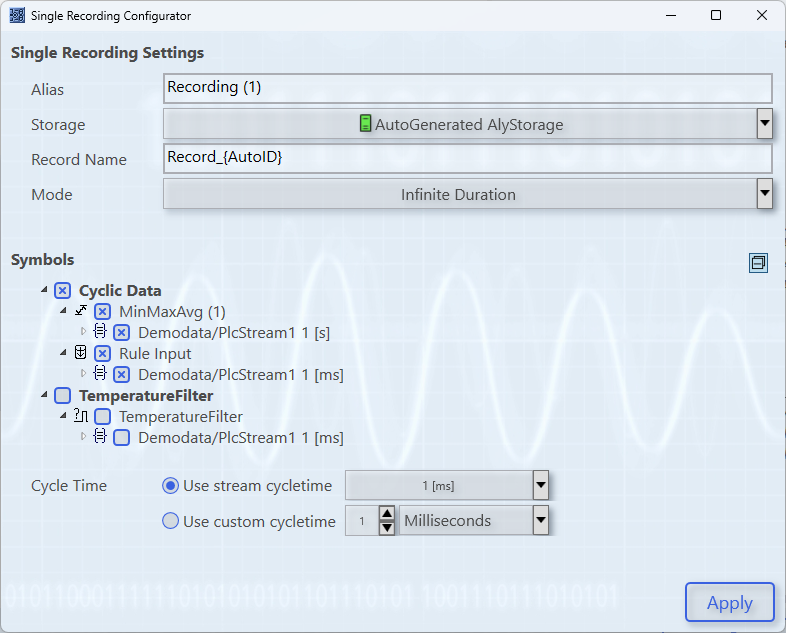

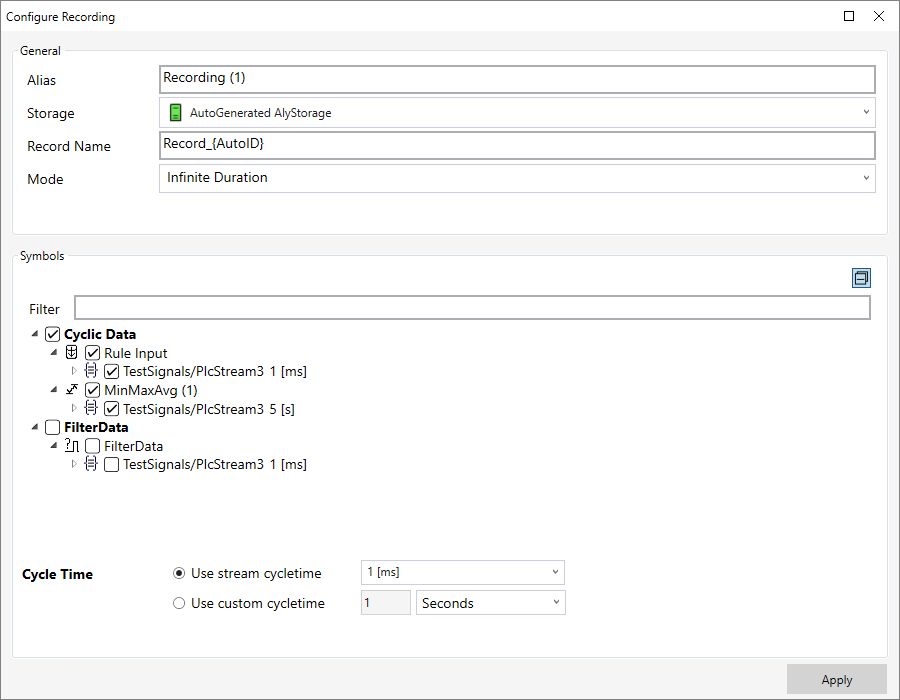

Recordings are edited in the Single Recording Configurator. The following settings are available here:

• Alias: Recording alias
• Storage: Data sink for recording (configured in the Storage Provider Configurator)
• Record Name: Name of the record
• Mode: Mode of the record
• Infinite Duration: The record runs as long as the RuleEngine pipeline is running and data is available for the record.
• Timebased Ringbugger: The record runs as long as the RuleEngine pipeline is running and data is available for the record. The data is stored in a time-limited ring buffer.
• Databased Ringbugger: The record runs as long as the RuleEngine pipeline is running and data is available for the record. The data is stored in a ring buffer with a limited storage capacity.
• Symbols: Selection of symbols to be saved with the recording. You can choose between cyclic data or data filtered by conditions.
• CycleTime: Selection of the cycle time for recording. This selection can only be made if you want to save cyclic (unfiltered) data. You have the option of configuring a cycle time based on the variables or your own cycle time for recording. Note that data will be lost if the cycle time is greater than the minimum cycle time of the data. In this case, a message appears.
