TLS

TLS (Transport Layer Security) provide a secure communication channel between a client and a server. At its core, TLS is cryptographic protocols which use a handshake mechanism to negotiate various parameters to create a secure connection between the client and the server. The TwinCAT Analytics Logger is supporting TLS version 1.2.

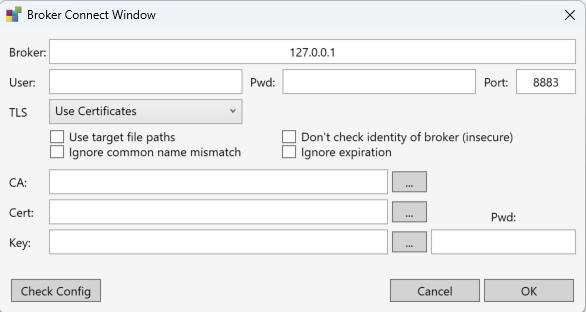

MQTT communication with TLS By the usage of certificates the TCP port 8883 is exclusively reserved for MQTT over TLS!

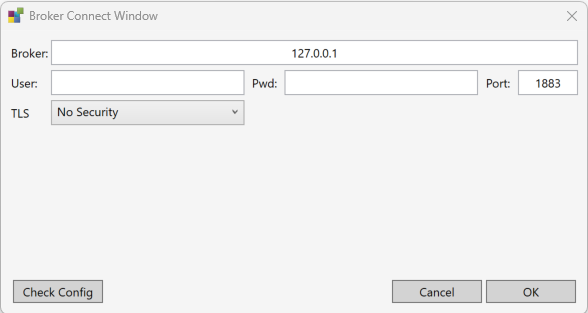

On the TLS tab of the Data Logger your first choice is the TLS Mode in a drop down box. Depending on the Message Broker it is possible to use different TLS mechanism/modes. The Analytics Logger is supporting the modes CA Certificates, CA Certificates & Client Certificate and the Preshared Key (PSK) mode.

CA Certificate

Encryption and authentication via TLS can also be accomplished through a certificate authority (CA). The CA provides a signature via the public key for all communication clients. In this case an MQTT client connect to a Message Broker without a dedicated client certificate.

CA Certificate & Client Certificate

Encryption and authentication via TLS can also be accomplished through a certificate authority (CA). The CA provides a signature via the public key for the message broker (the so-called server key) and usually also for all connecting clients. All communication devices can then trust each other, because the issuing certificate authority is trusted.

Preshared Key (PSK)

The TLS PreSharedKey (PSK) method offers a simple option for realizing encryption between client and message broker. Client and broker recognize a common password, which is used to encrypt and decrypt the packages.
