Windows
In the first step, the server was installed and runs as a service in the background. Immediately after installation, the server does not yet have a server instance. To create a new server instance, proceed as follows.
Initializing the TwinCAT HMI Server

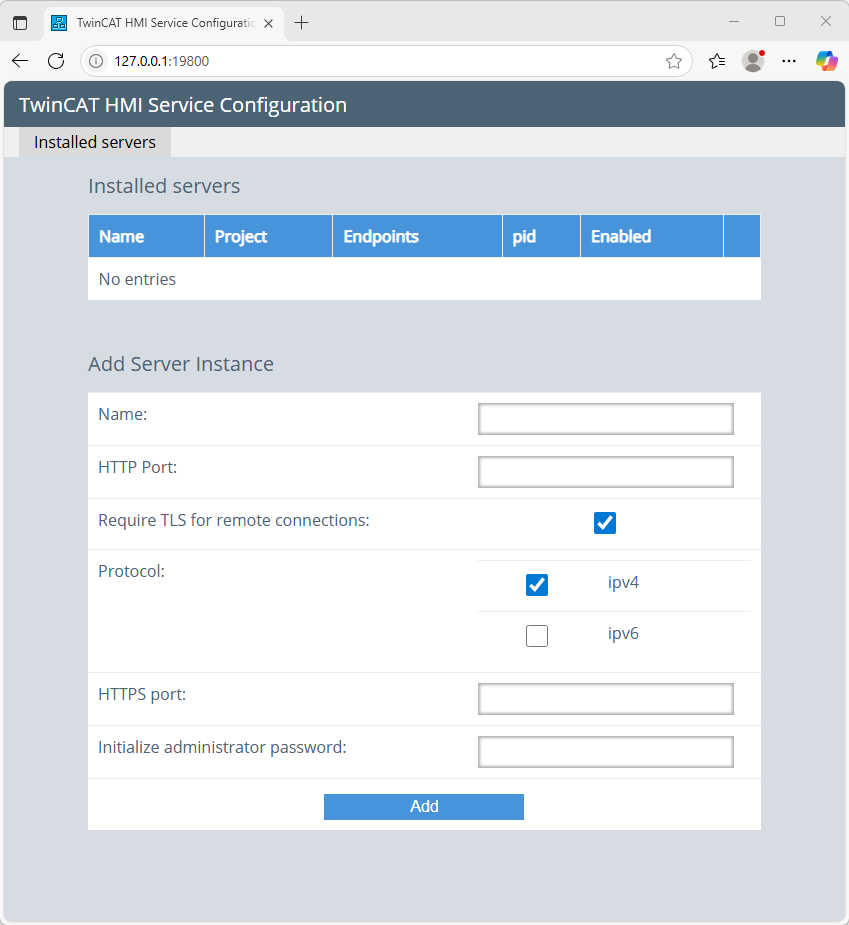

- 1. Open the Service configuration of the server.
Right-click on the TcHmi icon in the taskbar or via the browser http://127.0.0.1:19800/
- The Service configuration of the server opens in the browser
- 2. Add a new server instance.
Default Port HTTP 2010 and HTTPS 2020

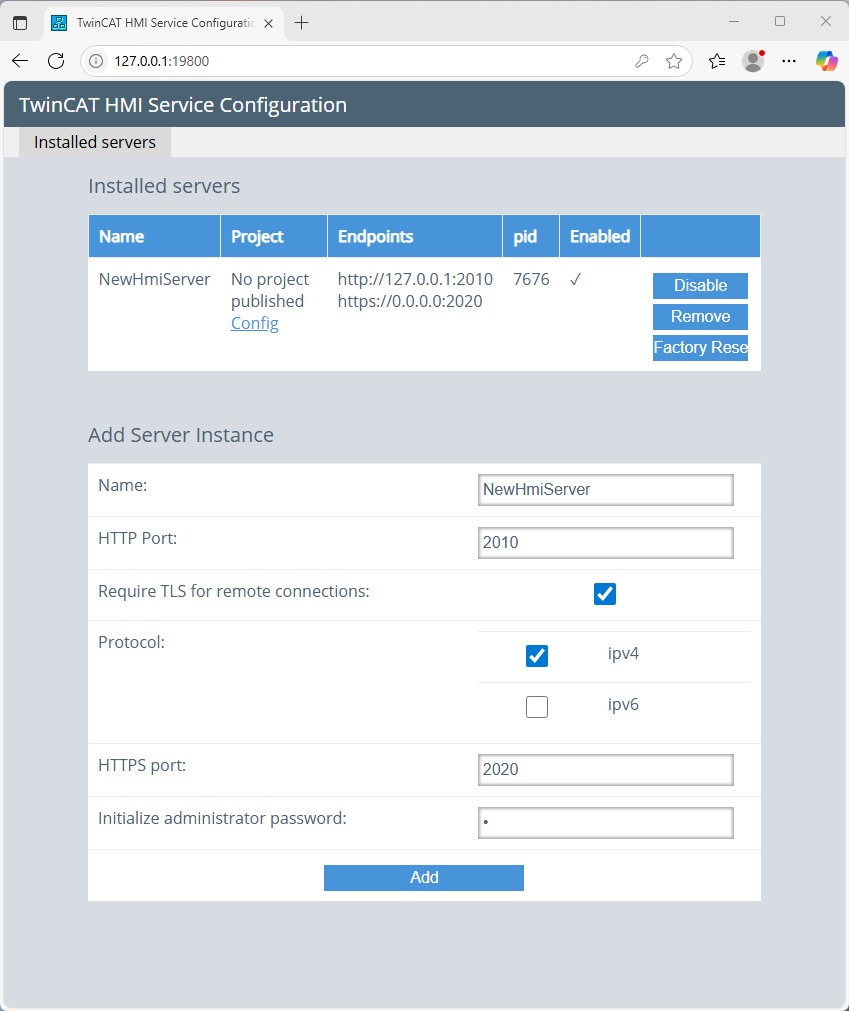

- A new instance has been successfully added and is displayed in the Installed Servers table.
