Windows

Installation Tcpkg (TwinCAT >= 4026)

PowerShell:

1. Open PowerShell.
2. Enter the command:
tcpkg install TF2000.HMIServer.XAR.
The TF2000 function has been successfully installed. The TwinCAT HMI Server starts as a service directly in the background and is available. You can manually stop or restart the service using the Task Manager.

TwinCAT Package Manager

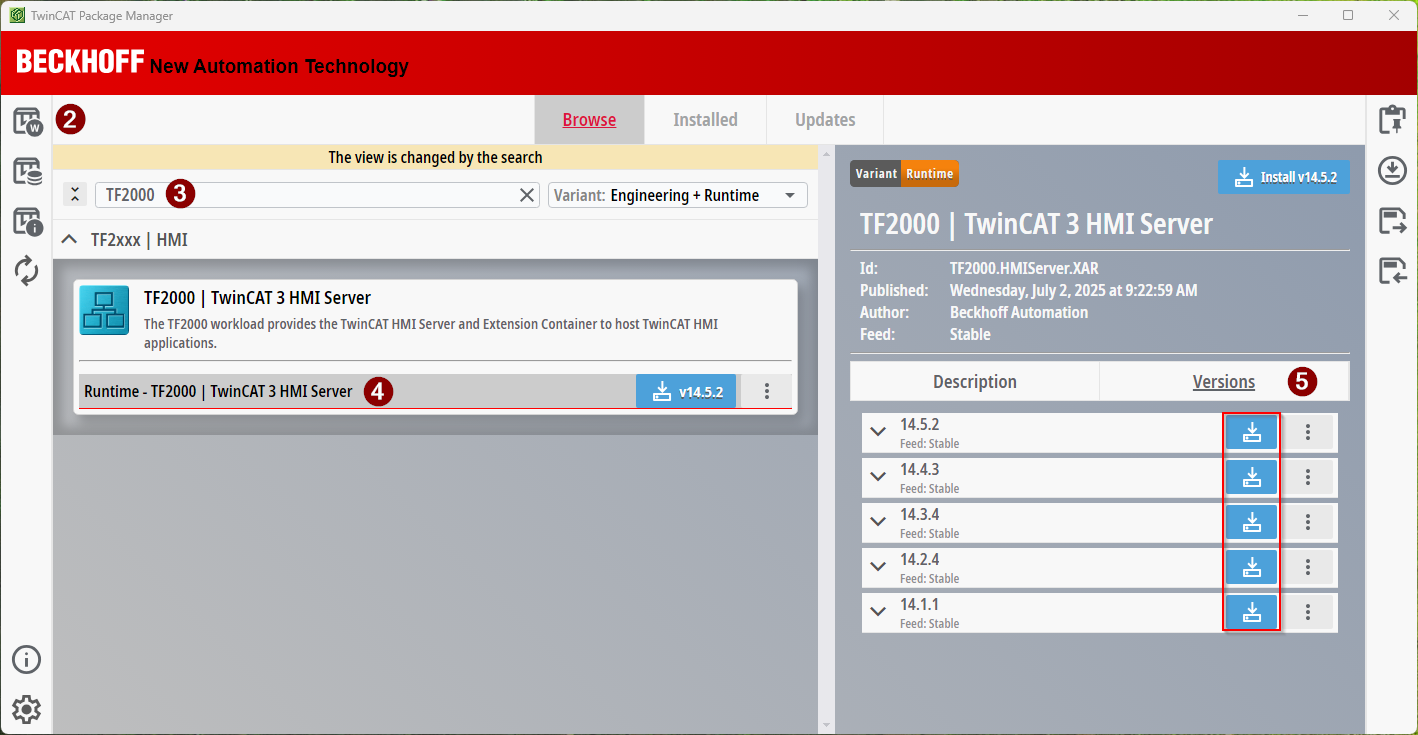

1. Open the TwinCAT Package Manager.
Windows 1:
2. Select the Workloads area.
3. Search for TF2000.
The workload of the TF2000 appears.
4. Select the TF2000 to see all available versions.
5. Select the required version.
The version has been placed in the top right of the template for installation.
6. Click on the template at the top right.
A side window opens.
7. Click Apply changes.
The TF2000 function has been successfully installed. The TwinCAT HMI Server starts as a service directly in the background and is available. You can manually stop or restart the service using the Task Manager.

Installation Setup (only for TwinCAT <= 4024)

To install the TwinCAT HMI Server for Windows-based operating systems, proceed as follows:

1. Start the setup as administrator.
Right-click to open the context menu to start the installation as administrator.

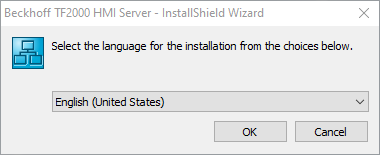

2. Select the language to guide you through the installation.
Windows 2:

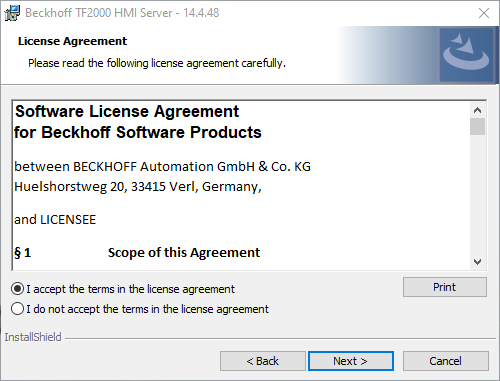

3. Check the license agreement
Windows 3:

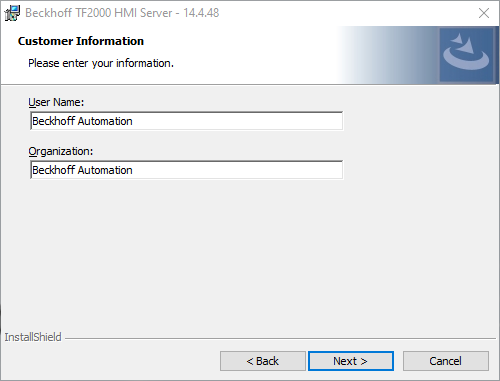

4. Enter your information.
Windows 4:

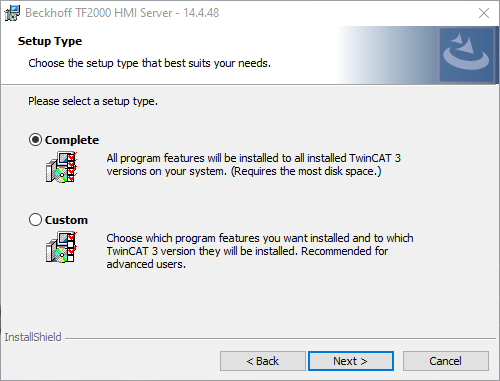

5. Select between a Complete or Custom installation.
Windows 5:
6. Select the options you require.
Windows 6:
The TF2000 function has been successfully installed. The TwinCAT HMI Server starts as a service directly in the background and is available. You can manually stop or restart the service using the Task Manager.
