HMI generation

Using the project context menu Generate HMI Template, you can create a new HMI project with the corresponding content or generate the content in an existing HMI project.

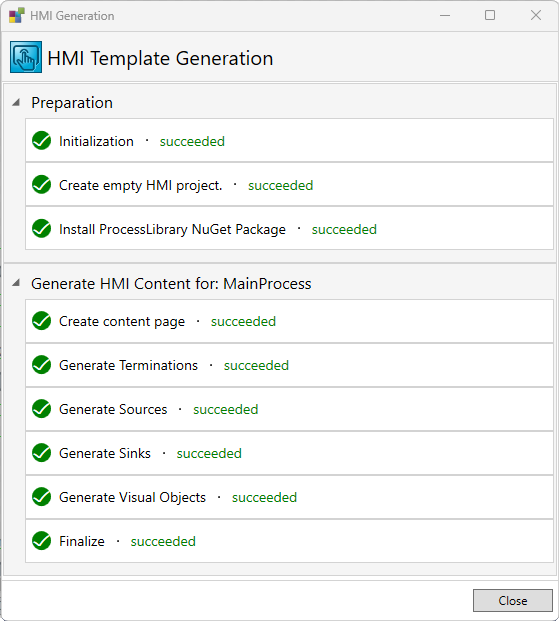

HMI generation 1:
HMI generation 2:

Generate and activate the PLC project before HMI generation so that the automatic mapping between PLC function blocks and HMI controls is implemented,

The Region of the Desktop.view in the new HMI project is created automatically and linked to the newly created content. The new page is then opened automatically to create the Historize Settings in the background.

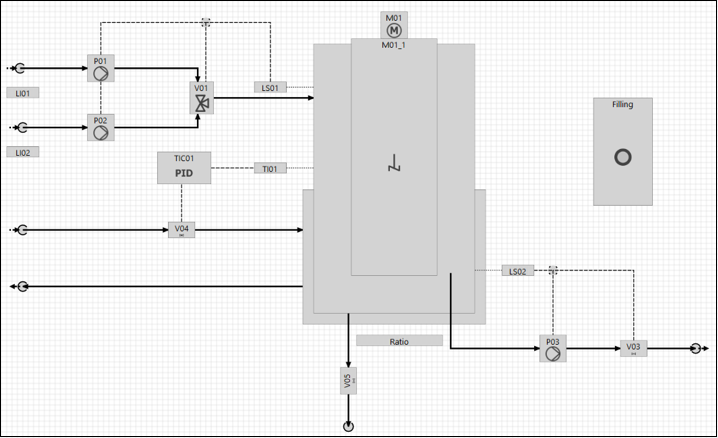

Below you can see the HMI picture in MTP Engineering and the TwinCAT HMI page created from it:

HMI generation 3:

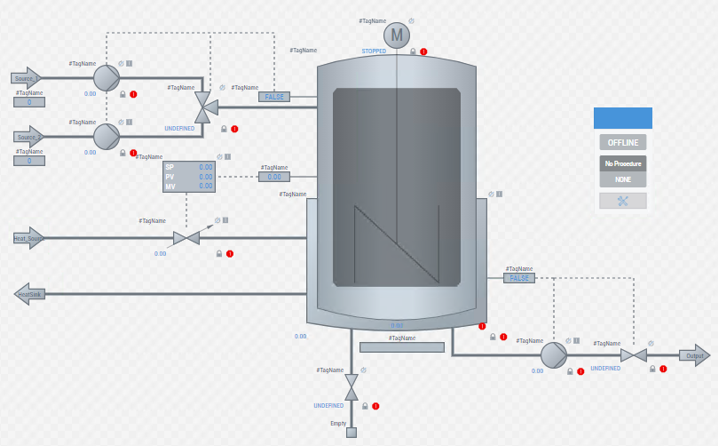

HMI generation 4:

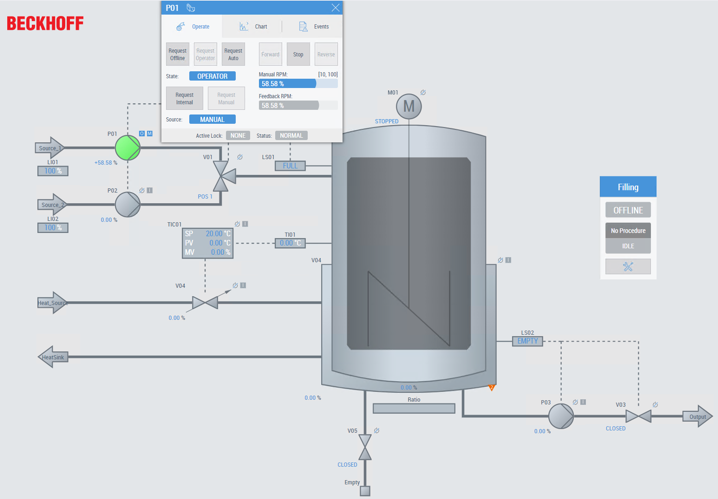

You can use Live View to test the operation in TwinCAT HMI Engineering or you can transfer the HMI project to a TwinCAT HMI server:

HMI generation 5:
