Overview

This chapter describes the MTP workload and the optional packages/workloads that you can use in the MTP context.

License description TE8400

Functional restriction without license:

• MTP export without OPC UA informations
• No consideration of services for human-machine interface generation of third-party modules

Workload TE8400 | TwinCAT3 MTP Engineering

The TE8400 workload has the following package dependencies:

• TwinCAT.XAE.MTP (MTP Engineering)
• TwinCAT.XAE.PLC.Lib.Tc3_MTP (MTP Runtime)
• TwinCAT.HMI.PI.ProcessLibrary
• TwinCAT.Standard.XAE
• TE2000.HMIEngineering.XAE

These packages/workloads are also installed if they are not already present.

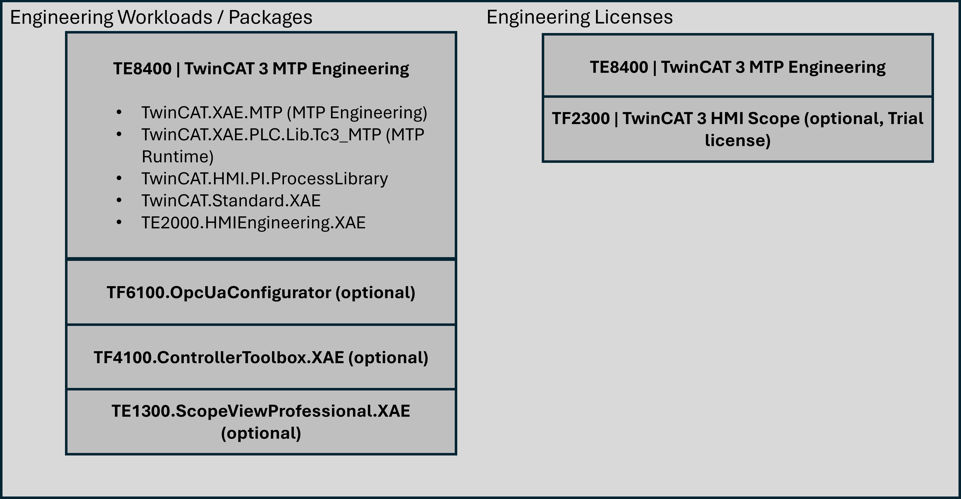

Other workloads that may be required (engineering)

• TF6100.OpcUaConfigurator.XAE
• Initialization and configuration of the OPC UA server
• TF4100.ControllerToolbox.XAE
• Targeted update of the Controller Toolbox
• TE1300.ScopeViewProfessional.XAE
• Creating scope projects (if necessary for referencing in HMI)

Other workloads that may be required (target system)

• TwinCAT.Standard.XAR
• TF6100.OpcUaServer.XAR
• Provision of the MTP variables via OPC UA
• TF610x | TwinCAT 3 OPC UA Client PubSub
• Use of the optional function block FB_MTP_OpcUaSessionMonitoring
• TF2000 | TwinCAT 3 HMI Server
• When using a local HMI
• TF3300.ScopeServer.XAR
• When using a Scope project

Required licenses (engineering)

• TE8400 | TwinCAT 3 MTP Engineering
• TF2300 | TwinCAT 3 HMI Scope (The test license is sufficient for publishing the HMI project to the HMI server)

Required licenses (target system)

• TC1200 | TwinCAT 3 PLC
• TF8400 | TwinCAT 3 MTP Runtime
• TF6100 | TwinCAT 3 OPC UA
• TF2000 | TwinCAT 3 HMI Server (Optional when using a local HMI)
• TF2300 | TwinCAT 3 HMI Scope (Optional when using the TwinCAT3 Scope)
• TF4100 | TwinCAT 3 Controller Toolbox (Optional when using the FB_MTP_PIDCtrl)
