Standard Deviation

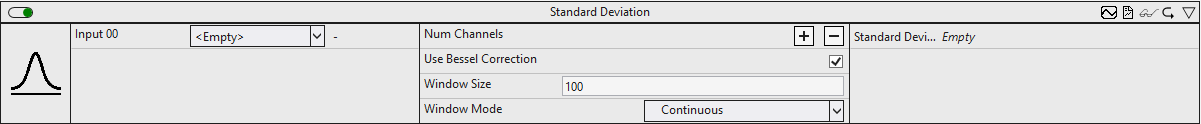

![Standard Deviation 1:](Images/png/9180364171__Web.png)
The Standard Deviation algorithm calculates the empirical standard deviation for a configurable number of input channels. The number of input data to be included in the calculation and the type of calculation can be configured.
Optionally, a Boolean signal can be selected for the Enable Execution input so that the algorithm is only active if the value of the selected signal is TRUE.
Configuration options
- Num Channels: Configuration of the number of independent input and output channels.
- Use Bessel Correction: If the checkbox is checked, Bessel's correction is applied. This parameter must be enabled in order to obtain an expected result for random samples.
The empirical standard deviation, without Bessel's correction
![Standard Deviation 2:](Images/jpg/3367284235__Web.jpg)
The empirical standard deviation, with Bessel's correction
![Standard Deviation 3:](Images/jpg/3367285899__Web.jpg)
- Window Mode: Window mode used. Influences the amount of input data included in the calculation and the timing of the calculations.
Continuous: All input values since the start of the algorithm are included in the calculation. The calculation is performed cyclically.
Fix Window: Only the last N input values are included in the calculation. The calculation is performed every N calls.
Sliding Window: Only the last N input values are included in the calculation. The calculation is performed cyclically. - Window Size: The number of values N that are included in the calculation can be configured depending on the window mode used. With the window mode Continuous this parameter is ignored.
Output values
- Standard Deviation 00..n: Empirical standard deviation of the input channels.
Standard HMI Controls
For the Standard Deviation algorithm, the following HMI controls are available for generating an Analytics Dashboard:
1. The Table Control or Multivalue Control visualizes all output values: Standard Deviation Results.
![Standard Deviation 4:](Images/png/9902020363__Web.png)
![Standard Deviation 5:](Images/png/9902018443__Web.png)
![Standard Deviation 6:](Images/png/9902033803__Web.png)
Alternatively, customer-specific HMI controls can be mapped in the Standard Deviation algorithm using the Mapping Wizard.
