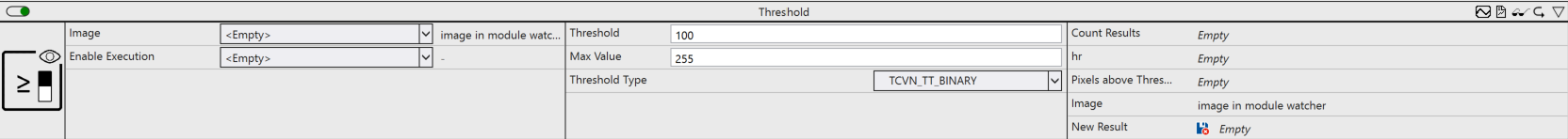

Threshold

Applies a binary threshold operation and counts pixels.

Optionally, a Boolean signal can be selected for the Enable Execution input so that the algorithm is only active if the value of the selected signal is TRUE.

Configuration options

• Threshold: Fixed threshold for conversion to a binary image.
• Max Value: Maximum value.
• Threshold Type: Type of threshold value.

Output values

• Count Results: Is incremented when a new result is provided.
• hr: HRESULT error code that outputs the result of the processing.
• Pixels above Threshold: Number of pixels with value greater than Threshold
• Image: Initial image of the algorithm.
• New Result: (Optional) TRUE if a new result is provided.
