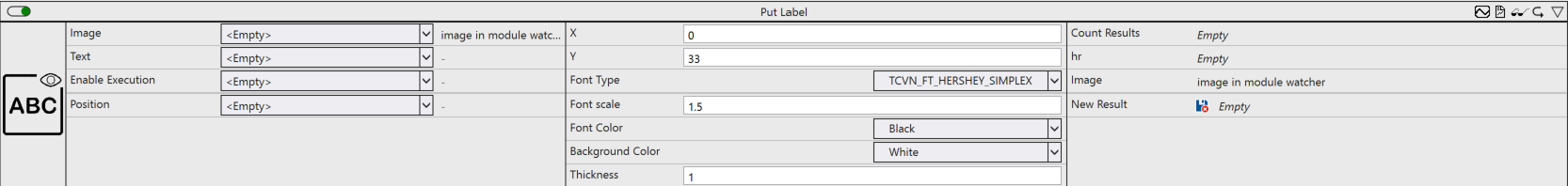

Put Label

Write text on a uniform background in the picture.

Optionally, a Boolean signal can be selected for the Enable Execution input so that the algorithm is only active if the value of the selected signal is TRUE.

Configuration options

• X: X-coordinate of the bottom left corner. If Position has an input, this value is used as an additional offset.
• Y: Y-coordinate of the bottom left corner. If Position has an input, this value is used as an additional offset.
• Font Type: Font type.
• Font Size: Font size.
• Font Color: Font color.
• Background Color: Background color.
• Thickness: Line width.

Output values

• Count Results: Is incremented when a new result is provided.
• hr: HRESULT error code that outputs the result of the processing.
• Image: Initial image of the algorithm.
• New Result: (Optional) TRUE if a new result is provided.
