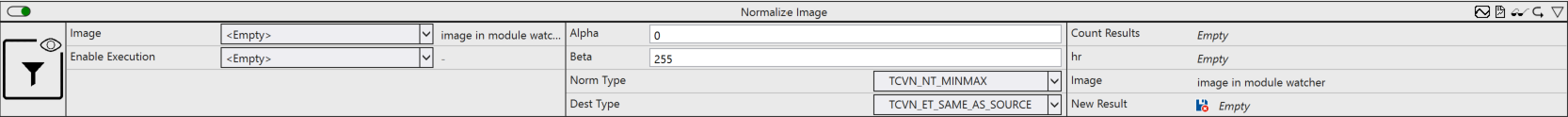

Normalize Image

Normalizes an image with regard to its value range, for example by spreading the pixel values [50..150] to the full range [0..255].

Optionally, a Boolean signal can be selected for the Enable Execution input so that the algorithm is only active if the value of the selected signal is TRUE.

Configuration options

• Alpha: (Optional) Lower range limit for range normalization or target value for normalization.
• Beta: (Optional) Upper range limit when normalizing the value range.
• Norm Type: (Optional) Normalization type, only INF, L1, L2 or MINMAX.
• Dest Type: (Optional) Color depth of the target image. Usually SAME_AS_SOURCE.

Output values

• Count Results: Is incremented when a new result is provided.
• hr: HRESULT error code that outputs the result of the processing.
• Image: Initial image of the algorithm.
• New Result: (Optional) TRUE if a new result is provided.
