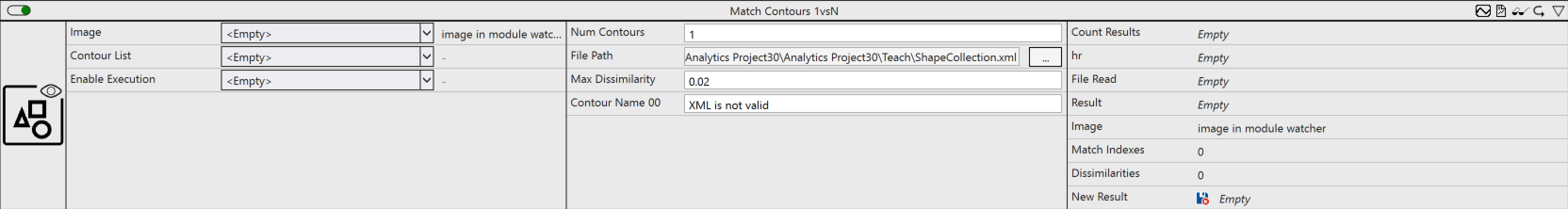

Match Contours 1vsN

Compares contours with contours previously saved in a file.

Optionally, a Boolean signal can be selected for the Enable Execution input so that the algorithm is only active if the value of the selected signal is TRUE.

Configuration options

• Num Contours: Number of contours with which the input contour is to be compared.
• File Path: File path of an XML file in which contours were saved.
• Max Dissimilarity: Maximum distance between the original contour and its approximation.
• Contour Name 00..n: Alias names of the contours.

Output values

• Count Results: Is incremented when a new result is provided.
• hr: HRESULT error code that outputs the result of the processing.
• File Read: TRUE if the file was read successfully.
• Result: Output of the best matching contour name if the maximum dissimilarity is not exceeded.
• Image: Initial image of the algorithm.
• Match Indexes: Listing of the indexes of the contours. Sorted by equality.
• Dissimilarities: Listing of the inequality of the contours. Sorted by equality.
• New Result: (Optional) TRUE if a new result is provided.
