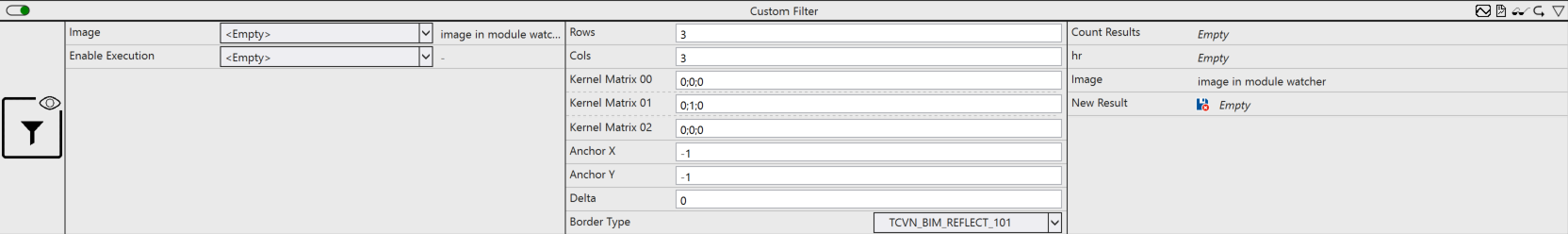

Custom filter

Applies a user-defined filter to the image.

Optionally, a Boolean signal can be selected for the Enable Execution input so that the algorithm is only active if the value of the selected signal is TRUE.

Configuration options

• Rows: Rows of the filter core matrix.
• Cols: Columns of the filter core matrix.
• Kernel Matrix: Filter kernel matrix
• Anchor X: (Optional) The anchor point defines which point of the filter kernel is moved over each pixel of the input image.
• Anchor Y: (Optional) The anchor point defines which point of the filter kernel is moved over each pixel of the input image.
• Delta: (Optional) The constant delta is added to the result of the filter operation.
• Border Type: (Optional) Treatment of the image border.

Output values

• Count Results: Is incremented when a new result is provided.
• hr: HRESULT error code that outputs the result of the processing.
• Image: Initial image of the algorithm.
• New Result: (Optional) TRUE if a new result is provided.
