Color Map

Applies a color scheme to a grayscale image. If the image is not a grayscale image, it is automatically converted.

Optionally, a Boolean signal can be selected for the Enable Execution input so that the algorithm is only active if the value of the selected signal is TRUE.

Configuration options

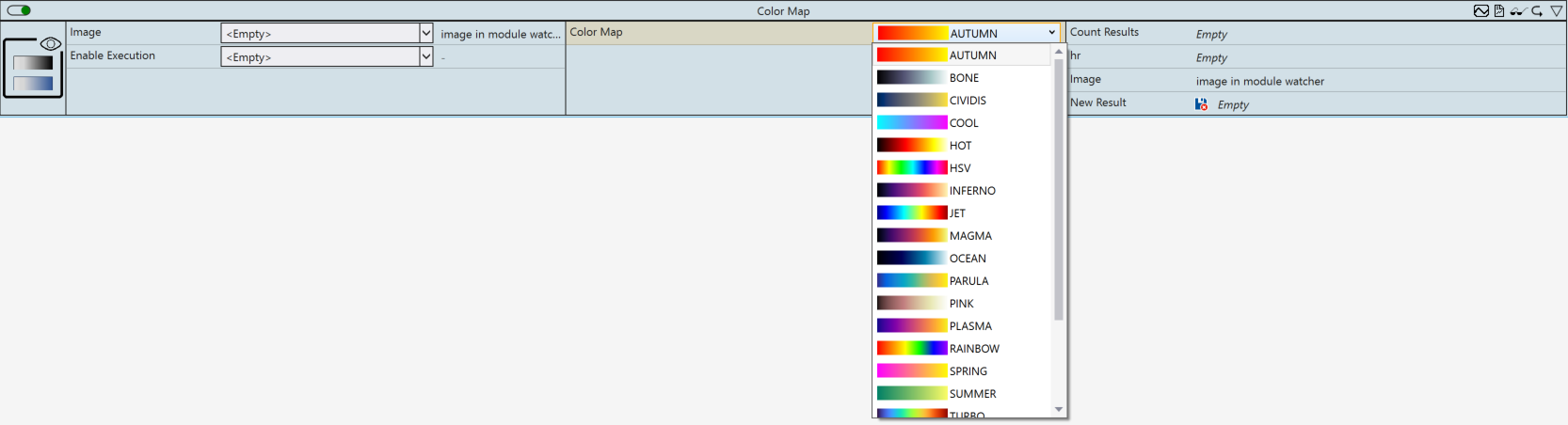

• Color Map: Choice of color scheme to be applied to the image.

Output values

• Count Results: Is incremented when a new result is provided.
• hr: HRESULT error code that outputs the result of the processing.
• Image: Initial image of the algorithm.
• New Result: (Optional) TRUE if a new result is provided.
