Quick start

To start, create or open a TwinCAT HMI project.

Installation

Install the NuGet package "Beckhoff.TwinCAT.HMI.Database" via the NuGet Package Manager.

Installation of a required database

Install at least one database required by the Database Extension.

Installation of the ODBC driver

Install the respective ODBC driver of the database used for the appropriate operating system and architecture on the engineering and target system

Configuring the Database Extension

  1. Open the configuration page of the TcHmiDatabase Extension.
  2. Add a new database connection.
  3. The connection is configured via the connection string:

Driver={PostgreSQL Unicode(x64)}; Server=localhost,Port=5432; Database=postgres; Uid=postgres; Pwd=@password;

Check the connection via the Diagnostics tab.

Driver

ODBC driver name

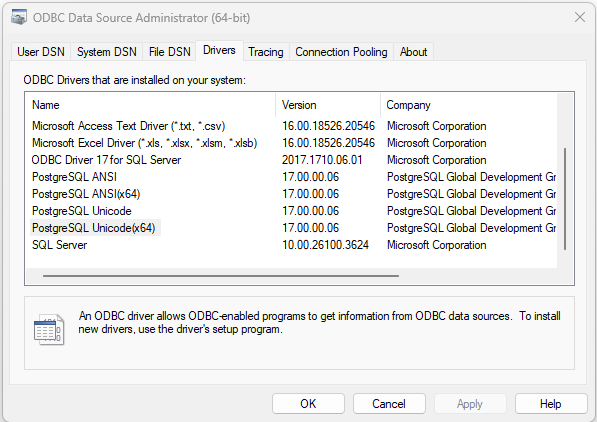

Under Windows, all database drivers can be listed with the ODBC Data Source Administrator program.

Quick start 1:

Server

Host name or IP of the database system

Port

TCP port of the database system

Database

Database name

Uid

Username

Pwd

Password

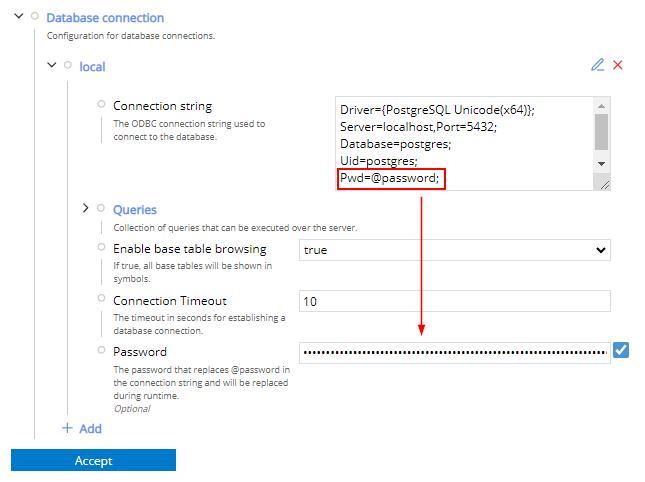

@password = Parameter for not displaying the password in plain text.

Quick start 2:

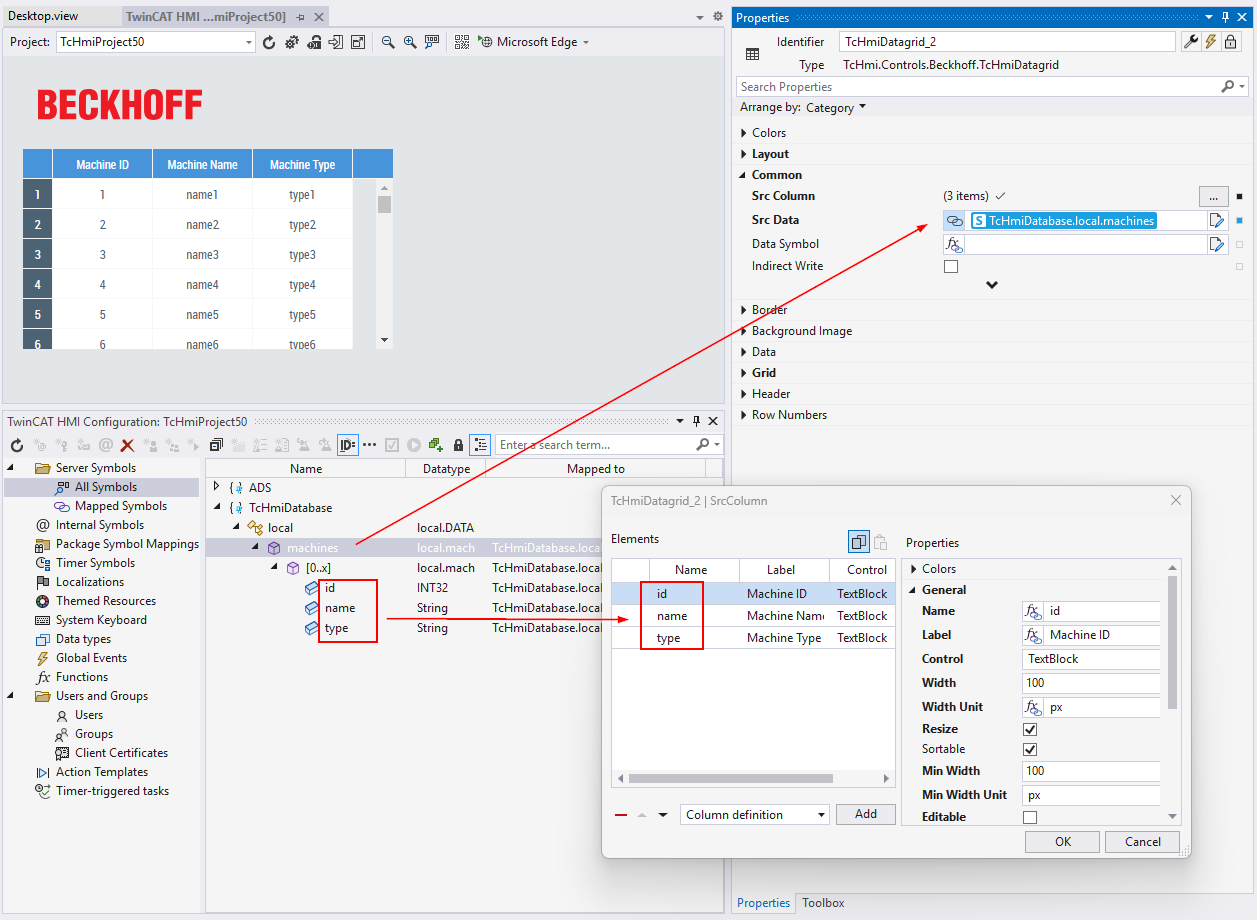

1. Activate "Enable base table browsing" so that all tables in the database are created as symbols.
2. Drop a Data Grid Control and configure the desired table as Src Data Attribute.
3. Under Src Column, enter the name of the individual columns in the control. These must reflect the column name from the database in order to create a link between the database column and the control column.
Quick start 3:
There is read-only access to the database.
Quick start 4:

A separate query must be used for write access to the database.
