Beckhoff RT Linux^®

	These instructions refer to version 26.5.0 of Keycloak.

	Keycloak is operated in "dev" mode in this manual. This mode is for test purposes only.

Installation of Keycloak

Establish a connection to the Package Manager of Beckhoff RT Linux® to install the corresponding package.

1. Update the packages.

sudo apt update

2. Install OpenJDK.

sudo apt install default-jdk

3. Install wget

sudo apt install wget

4. Download Keycloak

cd /opt
sudo wget https://github.com/keycloak/keycloak/releases/download/26.5.0/keycloak-26.5.0.tar.gz

5. Unpack Keycloak

sudo tar zxvf keycloak-26.5.0.tar.gz

6. Start Keycloak

cd /opt/keycloak-26.5.0
export KC_BOOTSTRAP_ADMIN_USERNAME=admin
export KC_BOOTSTRAP_ADMIN_PASSWORD=1
sudo bin/kc.sh start-dev --bootstrap-admin-username $KC_BOOTSTRAP_ADMIN_USERNAME --bootstrap-admin-password $KC_BOOTSTRAP_ADMIN_PASSWORD

7. Keycloak was created with a temporary admin.

Keycloak has been successfully launched.

Firewall settings

1. Create a configuration file in the /etc/nftables.conf.d/ directory with the name 00-keycloak.conf, for example

sudo nano /etc/nftables.conf.d/00-keycloak.conf

2. Insert the following content and adjust the values to your network requirements:

table inet filter {
  chain input {
    # accept Keycloak
    tcp dport 8080 accept
  }
}

3. Save and close the configuration file.

4. Load the new rule with the command

sudo systemctl reload nftables

5. Check the settings and make sure that the configuration has been applied correctly.

Port 8080 has been released for Keycloak.

sudo nft list ruleset

Configure Keycloak

1. Open the following URL in your browser:
Example for the placeholder:
<root> = 192.168.2.144:8080

http://<root>/

2. Log in to the Keycloak server.

3. Select the Clients tab.

4. Create a new client for your TwinCAT HMI application.

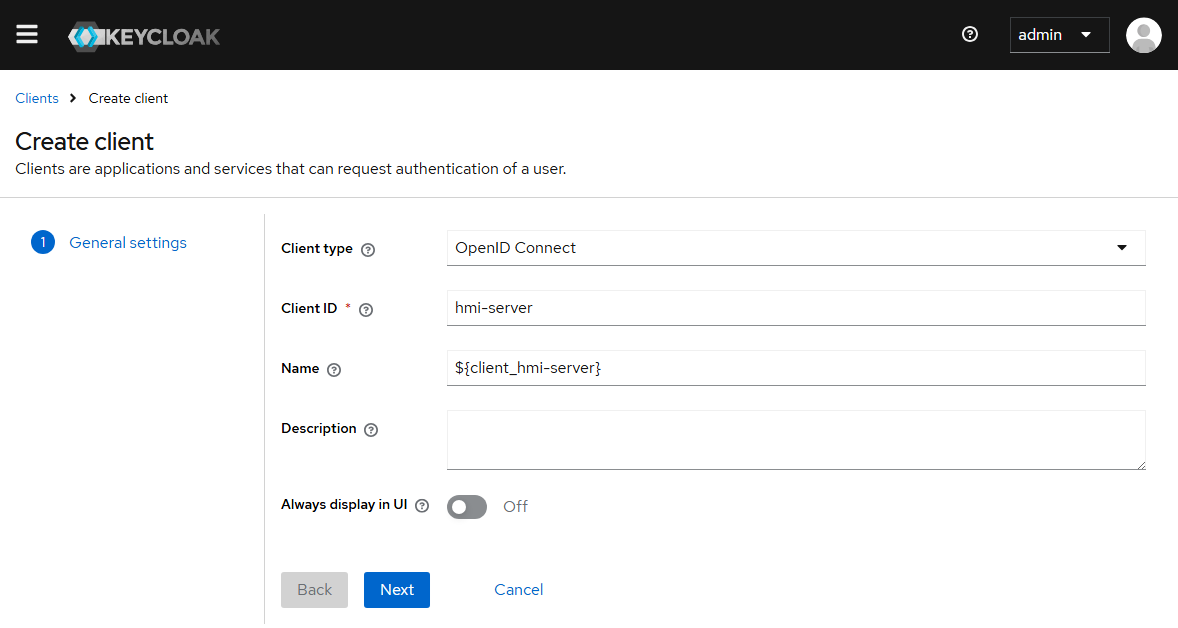

5. Name your client
Beckhoff RT Linux® 3:

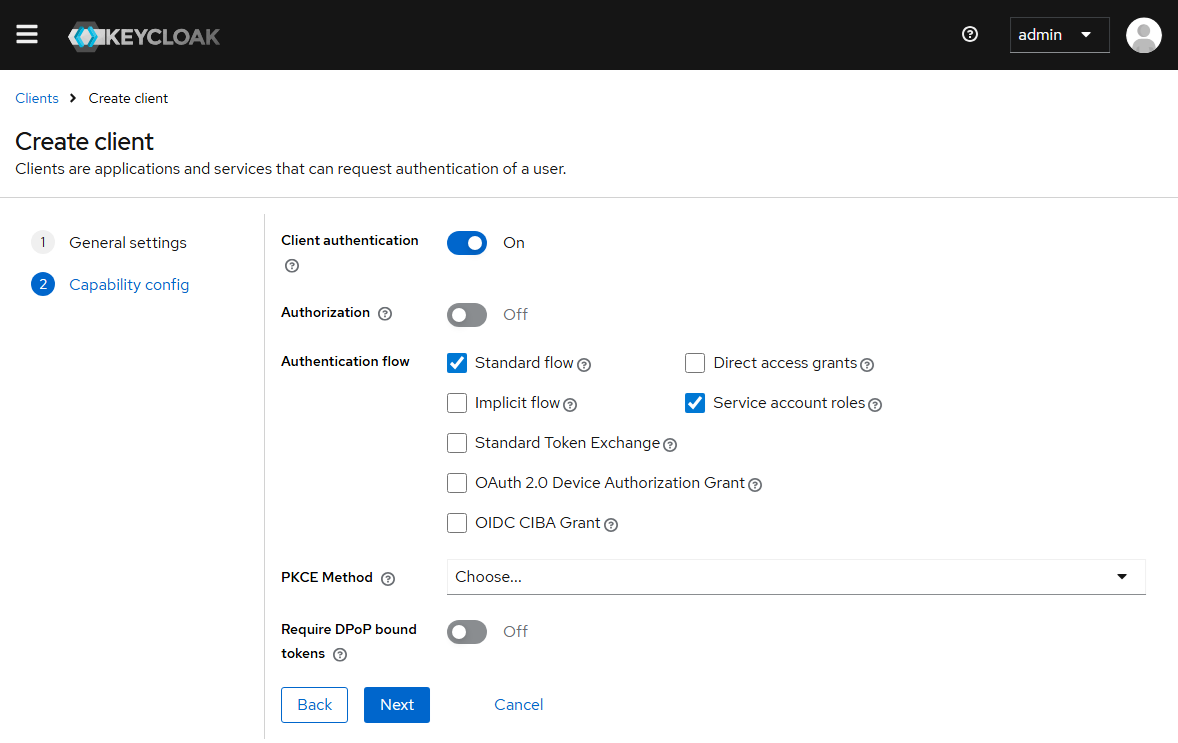

6. Switch Client authentication to on and activate Service account roles
Beckhoff RT Linux® 4:

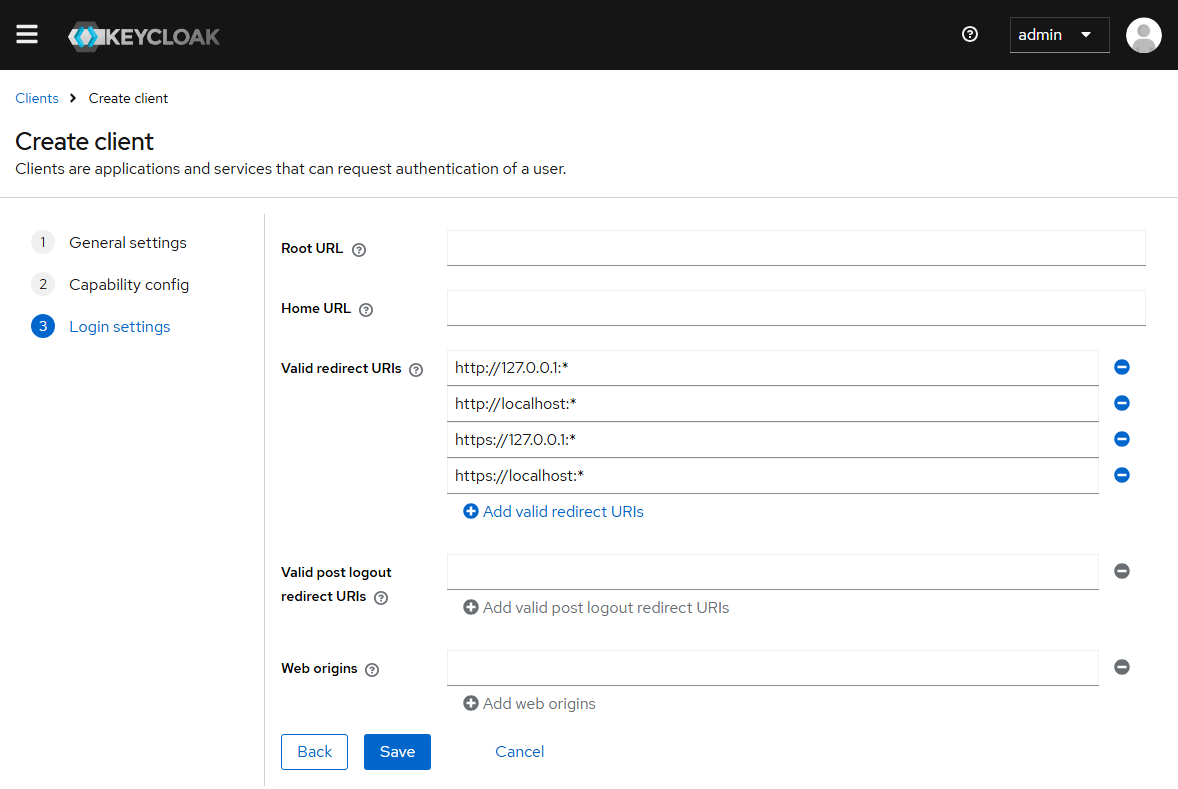

7. Enter the Valid redirect URIs as shown in the screenshot.
Beckhoff RT Linux® 5:

http://127.0.0.1:*
http://localhost:*
https://127.0.0.1:*
https://localhost:*

8. Click on Save to create the new client.

The new client has been successfully created.
