Quick start

To start, create or open a TwinCAT HMI project.

Installation

Install the NuGet package "Beckhoff.TwinCAT.HMI.OAuth" via the NuGet Package Manager.

Installation of a required user management server

Install a user management server required by OAuth.

Configuring the TwinCAT HMI server (example with Keycloak)

1. Open the configuration page of the server in the HMI project.
2. Go to the Security subtab.

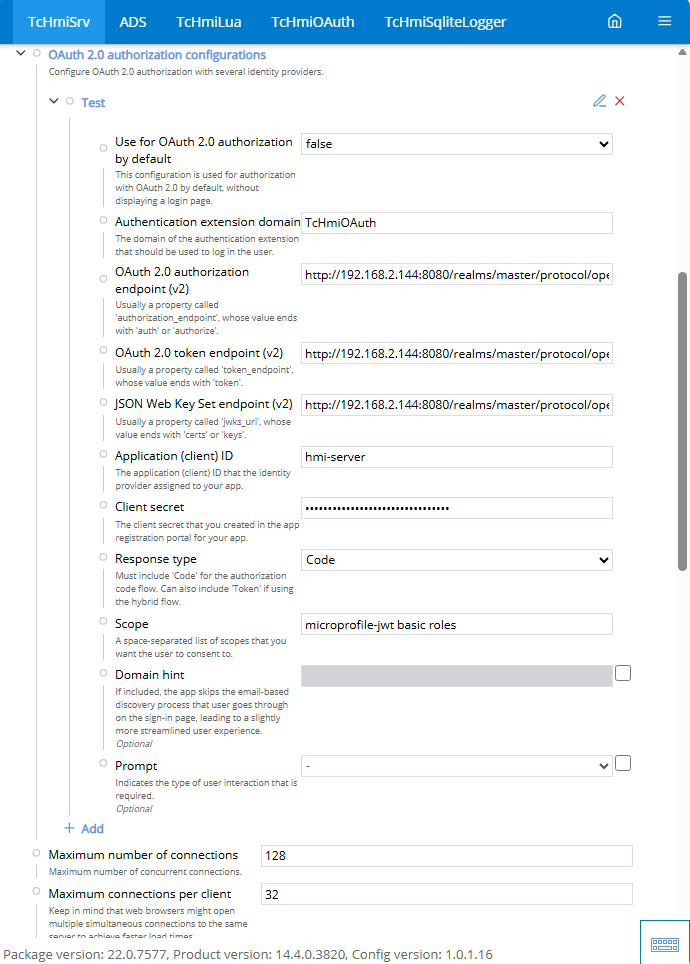

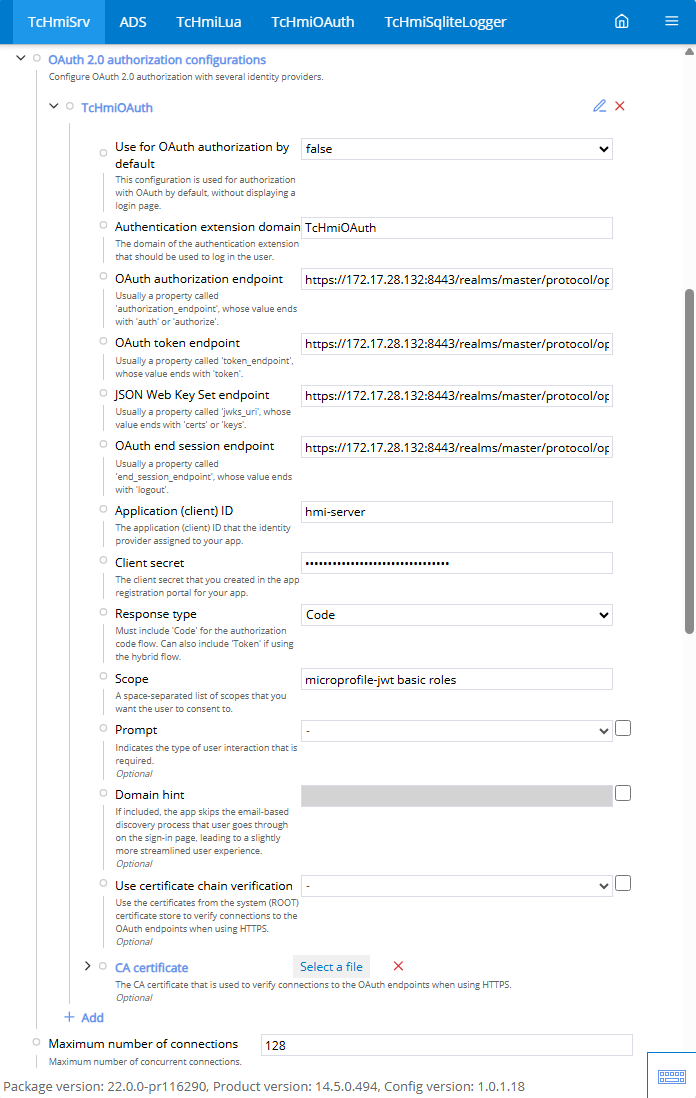

Quick start 1:
3. Open the following URL in a web browser to have the most important information from Keycloak at a glance:

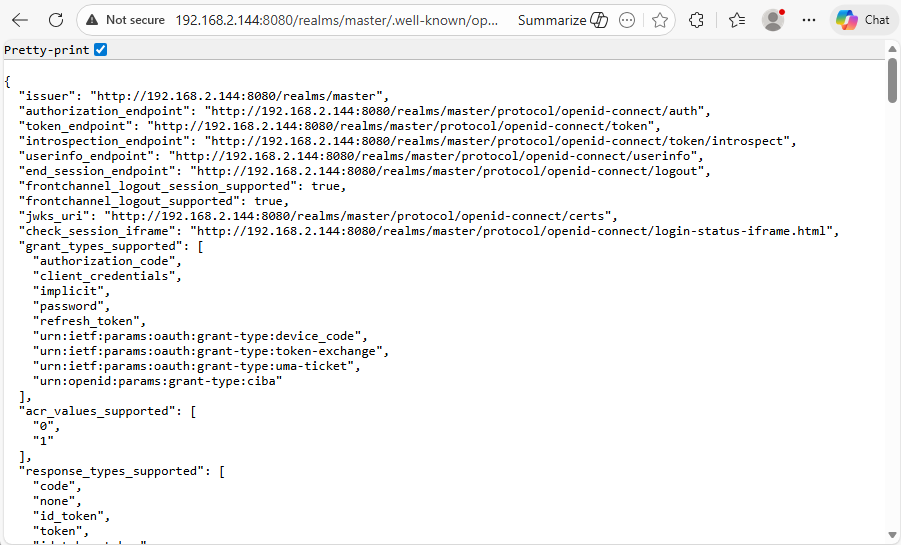

Quick start 2:
Examples for the placeholders:
<root> = 192.168.2.144:8080
{realm-name} = master
http://<root>/realms/{realm-name}/.well-known/openid-configuration
4. Set the connection to the user management server here.
Use by default for OAuth authorization: false.
Authentication extension domain: TcHmiOAuth.
OAuth authorization endpoint: value of "authorization_endpoint".
OAuth token endpoint: value of "token_endpoint".
JSON web key set endpoint: value of "jwks_url".
OAuth endpoint for ending the session: Value of "end_session_endpoint".
Application or client ID: Enter the client ID you have defined.
Secret client key: Enter the "Client Secret" of your client (Clients/<clientName>/Credentials)
Response type: Code
Application area: microprofile-jwt basic roles
The connection to a user management server via OAuth has been successfully established.

Configuring the OAuth extension

1. Open the OAuth configuration page in the HMI project.

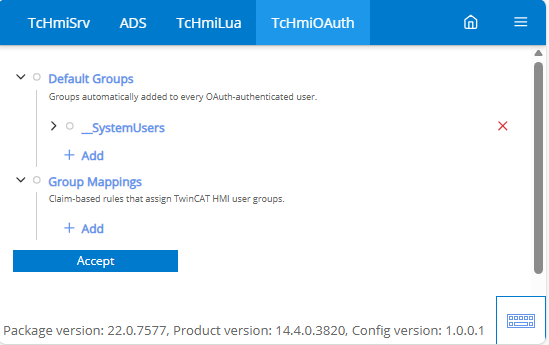

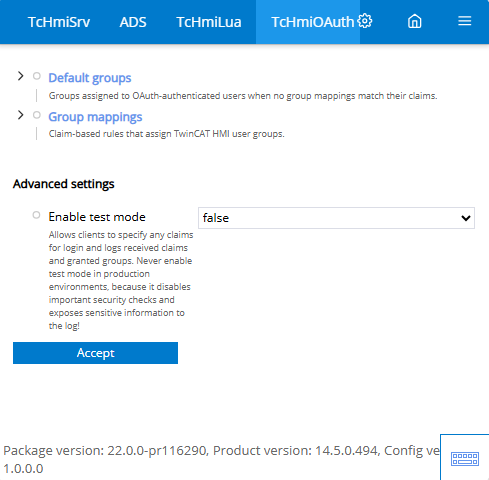

Quick start 3:
2. Under Default groups, specify which user groups are assigned to the OAuth users by default. This group is added if none of the rules under Group assignment match the user.
3. Under Group assignment, specify which user groups should be assigned to the OAuth users under certain conditions.
You have successfully established a connection between the TwinCAT HMI server and a user management server.
