Package creation

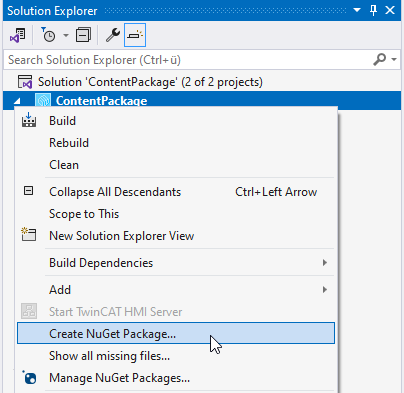

A NuGet package can be created via the context menu of an HMI framework project.
The package is copied to the following path:
C:\ProgramData\Beckhoff\NuGetPackages

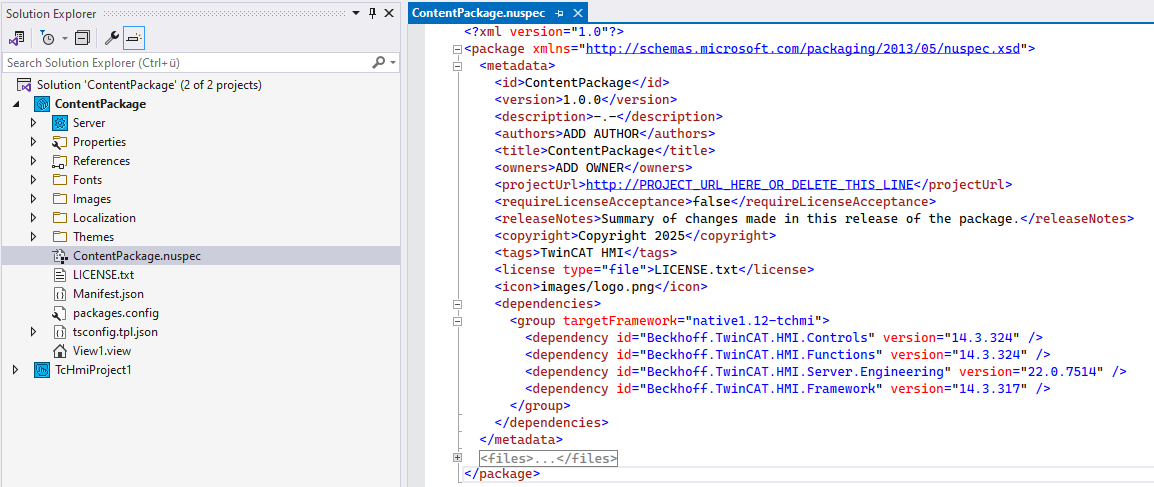

The package name consists of the Package ID and the version number. The project's meta information can be configured via the .nuspec file in the HMI project:
Description of the preconfigured metadata:
Element | Description |
|---|---|
id | Name of the package |
version | Version of the package |
description | Description of the package |
authors | Authors of the package |
title | Title of the package |
owners | Owners of the package |
projectUrl | Link to the project or product |
requiredLicenseAcceptance | User query during installation |
releaseNotes | Release Notes |
copyright | Copyright |
tags | Tags for optimizing the search in the Package Manager |
license | Reference to the license file or expression |
icon | Path to the icon for the package |
dependencies | Dependencies that are loaded at project start |
files | "src" defines which files are copied into the package "target" specifies the path in the package "exclude" excludes folders from the copy process |
