Export

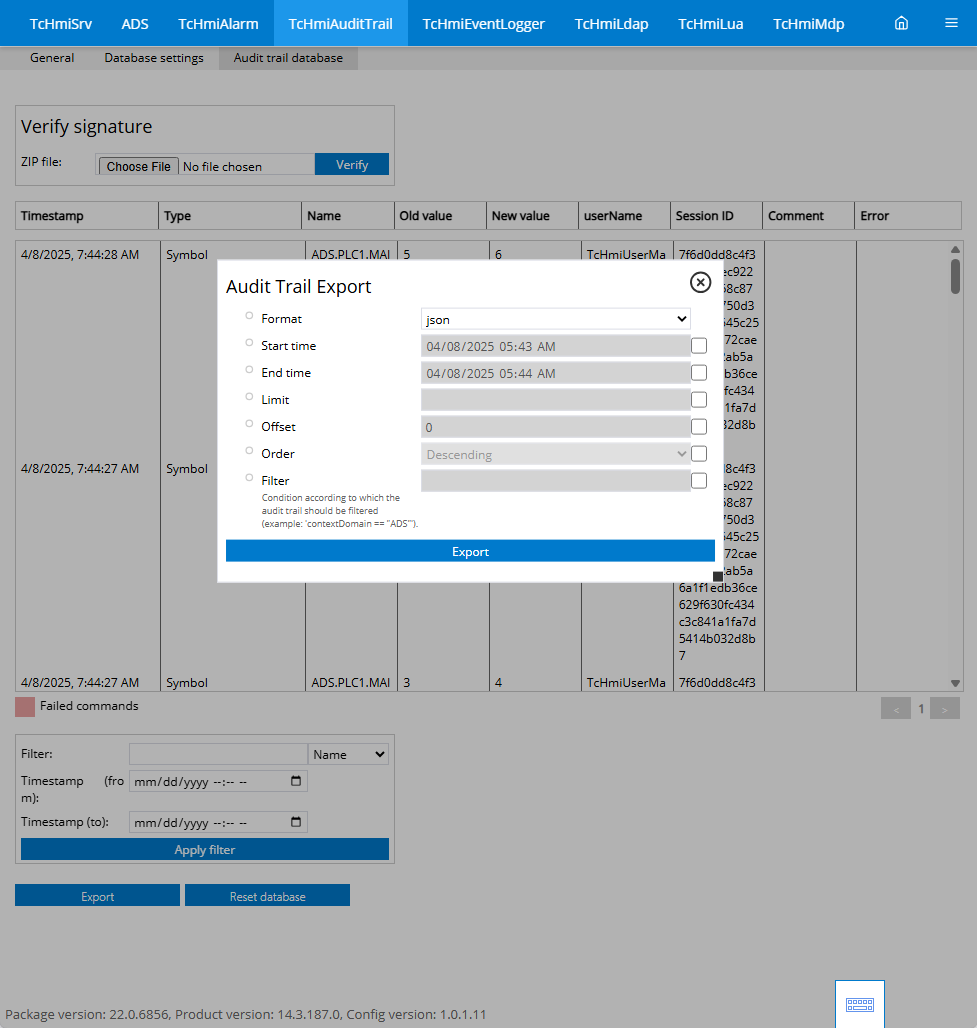

Exporting the database entries via the server configuration page

In the TcHmiAuditTrail/Audit Trail database tab, the current entries in the database can be exported in HTML, JSON or CSV format.

Format

• Selection of HTML, JSON or CSV format to be exported.

Start time

• Start time from which the values are exported.

End time

• Time up to which the data is exported.

Limit

• Limitation of exported entries.

Offset

• Offset from which the data is exported.

Order

• Sort order of the data to be exported.

Filter

• Filter settings for the data to be exported.

Exporting the database entries via the "TcHmiAuditTrailGrid" control

The recorded values can be exported as HTML, JSON or CSV via the export function.

Format

• Selection of the export format: HTML, JSON or CSV.

Limit

• Limitation of exported entries.

Offset

• Offset from which the data is exported.

OrderBy

• Sort the entries "ASC" in ascending order and "DESC" in descending order for the corresponding column.

Filter

• Filter settings for the data to be exported.
