Data files

If data files are available that can be loaded via the target browser, this data can also be filtered from the designed filter set.

SVDX file

To filter SVDX data, you need to drag and drop the relevant variable from the target browser into the corresponding filter set. If there are several filter sets under a filter plot, the variable can also be dragged into the filter plot.

Data files 1:

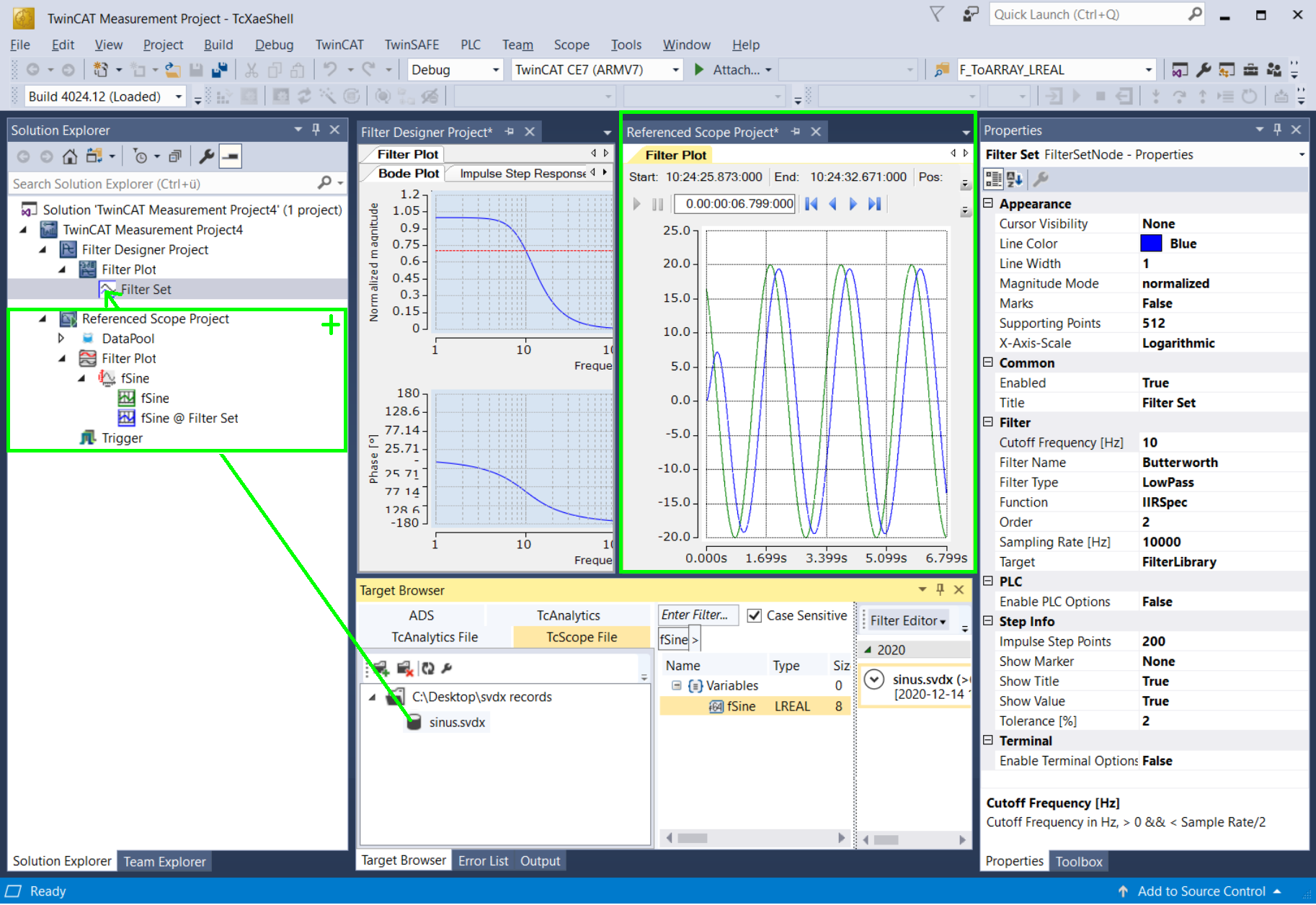

After the drag and drop process, a Scope project is created automatically that contains both the raw signal (green) and the filtered signal (blue) that is dependent on the filter set.
