Mounting and demounting
The terminal modules are fastened to the assembly surface with the aid of a 35 mm mounting rail (e.g. DIN rail TH 35-7.5 according to EN 60715a).
| |
Risk of electric shock and damage of device! Bring the bus terminal system into a safe, powered down state before starting installation, disassembly or wiring of the Bus Terminals! |
Mounting
- Fit the mounting rail to the planned assembly location.

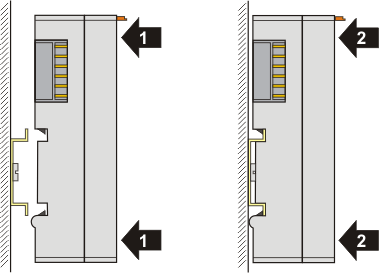

and press (1) the terminal module against the mounting rail until it latches in place on the mounting rail (2).- Attach the cables.
Demounting
- Remove all the cables.

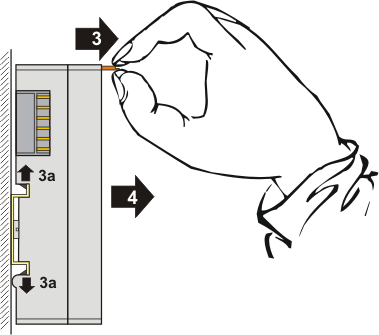

- Lever the unlatching hook back with thumb and forefinger (3). An internal mechanism pulls the two latching lugs (3a) from the top hat rail back into the terminal module.
- Pull (4) the terminal module away from the mounting surface.
