Version identification of EtherCAT devices

Designation

A Beckhoff EtherCAT device has a 14-digit designation, made up of

family key
type
version
revision

Example	Family	Type	Version	Revision
EL3314-0000-0016	EL terminal (12 mm, non-pluggable connection level)	3314 (4-channel thermocouple terminal)	0000 (basic type)	0016
CU2008-0000-0000	CU device	2008 (8-port fast ethernet switch)	0000 (basic type)	0000
ES3602-0010-0017	ES terminal (12 mm, pluggable connection level)	3602 (2-channel voltage measurement)	0010 (high-precision version)	0017

Notes

The order identifier is made up of
- family key
- type
- version
The revision indicates the technical progress and is managed by Beckhoff.
In principle, a device with a higher revision can replace a device with a lower revision, unless specified otherwise.
Each revision usually has an associated XML description (ESI, EtherCAT Slave information), which is available for download from the Beckhoff webpage.
Type, version and revision are read as decimal numbers.

Serial number

Beckhoff EtherCAT devices usually have an 8-digit serial number, which is printed on the device or attached to it on a sticker. This serial number indicates the construction condition on delivery.

Syntax of the serial number

Structure of the serial number: KK YY FF HH

KK - week of production (CW, calendar week)
YY - year of production
FF - firmware version
HH - hardware version

Example with ser. no.: 12 06 3A 02:

12 - week of production 12
06 - year of production 2006
3A - firmware version 3A
02 - hardware version 02

Examples of serial number data

Version identification of EtherCAT devices 1:

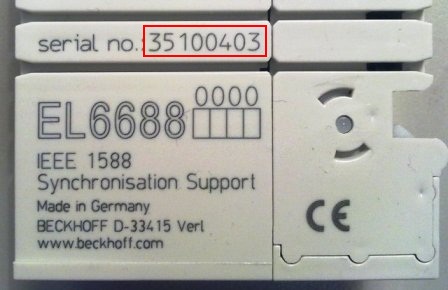

Fig. 1: EL6688 EL Terminal

Version identification of EtherCAT devices 2:

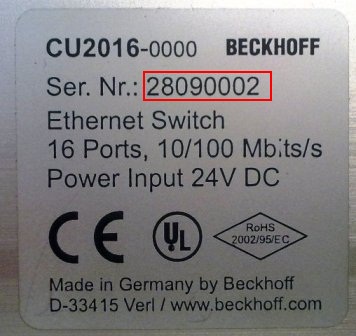

Fig. 2: CU2016 Switch

Version identification of EtherCAT devices 3:

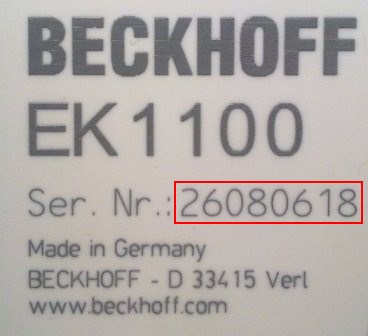

Fig. 3: EK1100 EtherCAT coupler
