FB_BasicPID
The function block is a simple discretized PID element.
Transfer function:

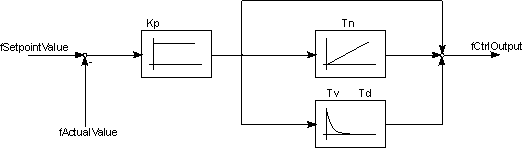

Functional diagram:
VAR_INPUT
VAR_INPUT
fSetpointValue : REAL;
fActualValue : REAL;
bReset : BOOL;
fCtrlCycleTime : REAL;
fKp : REAL;
fTn : REAL;
fTv : REAL;
fTd : REAL;
END_VAR
fSetpointValue: setpoint of the controlled variable.
fActualValue: actual value of the controlled variable.
bReset: TRUE at this input resets the internal state variables and the controller output.
fCtrlCycleTime: cycle time with which the function block is called and with which the control loop is processed [s].
fKp : controller amplification / controller coefficient
fTn : integral action time [s]
fTv: derivative action time [s]
fTd : damping time [s]
VAR_OUTPUT
VAR_OUTPUT
fCtrlOutput : REAL;
nErrorStatus : UINT
END_VAR
fCtrlOutput : output of the PID element.
nErrorStatus : indicates the error number in the event of an error (nErrorStatus <> 0).
0 = nERR_NOERROR : no error.
1 = nERR_INVALIDPARAM : invalid parameters
2 = nERR_INVALIDCYCLETIME : invalid cycle time.
Requirements
Development environment |
Target platform |
PLC libraries to include |
---|---|---|
TwinCAT v2.8.0 Build > 747 TwinCAT v2.9.0 Build > 947 |
PC (i386) |
TcUtilities.Lib ( Standard.Lib; TcBase.Lib; TcSystem.Lib are included automatically ) |
TwinCAT v2.7.0 Build > 522 TwinCAT v2.8.0 Build > 747 TwinCAT v2.9.0 Build > 947 |
BCxxxx (165) |
Standard.Lb6, PlcSystemBC.Lb6, TcPlcUtilitiesBC.Lb6 |
