FILEWRITE

VAR_INPUT

VAR_INPUT
    NETID       : T_AmsNetId;   (* ams net id *)
    HFILE       : UINT;         (* file handle *)
    BUFADDR     : DWORD;        (* buffer address for write *)
    COUNT       : UDINT;        (* count of bytes for write *)
    WRITE       : BOOL;         (* write control input *)
    TMOUT       : TIME;
END_VAR

NETID : is a string containing the AMS network identifier of the target device to which the ADS command is directed.

HFILE : is occupied by the file handle already created by FILEOPEN.

BUFADDR : contains the address of the buffer containing the data to be written. The programmer is responsible for dimensioning the buffer such that it can accommodate WRITELEN bytes.

COUNT : contains the number of bytes to be written.

WRITE : the ADS command is triggered by a rising edge at this input.

TMOUT : specifies the time until the abortion of the function.

VAR_OUTPUT

VAR_OUTPUT
    BUSY        : BOOL;
    ERR         : BOOL;
    ERRID       : UDINT;
    COUNT_W     : UDINT;            (* count of bytes actually written *)
END_VAR

BUSY : this output remains TRUE until the function block has executed a command, but at the longest for the duration supplied to the 'Timeout' input. While Busy = TRUE, no new command will be accepted at the inputs. Please note that it is not the execution of the service but its acceptance whose time is monitored.

ERR : this output is switched to TRUE if an error occurs during the execution of a command. The command-specific error code is contained in ‘ErrorId’. If the function block has a timeout error, 'Error' is TRUE and 'ErrorId' is 1861 (hexadecimal 0x745). Is reset to FALSE by the execution of a command at the inputs.

ERRID : contains the instruction-specific error code of the most recently executed command. Is reset to 0 by the execution of a command at the inputs. If the error code is -1 (16#FFFF), the write operation cannot be performed because, for example, the file was not opened correctly.

COUNT_W : contains the number of bytes currently written.

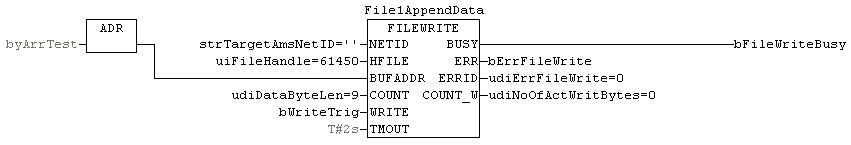

Sample of calling the function block in FBD:

In the sample, after a rising edge at ”bWriteTrig", 9 bytes of the array ”byArrTest" are written at the end of the file with handle ”61450".
