KL6401 - Linking to the TwinCAT System Manager

How do I link the KL6401 to the System Manager?

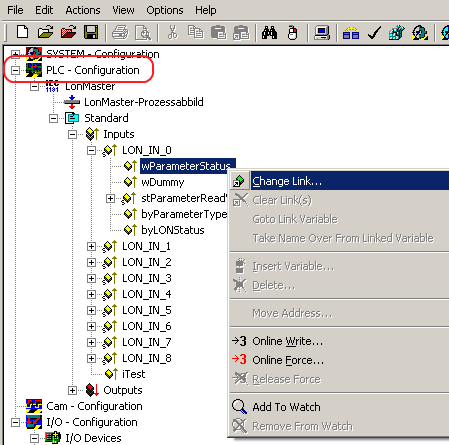

Click onto the variable wParameter of the input structure with the right mouse button and choose "Change Link". (see figure 1)

KL6401 - Linking to the TwinCAT System Manager 1:
Figure 1

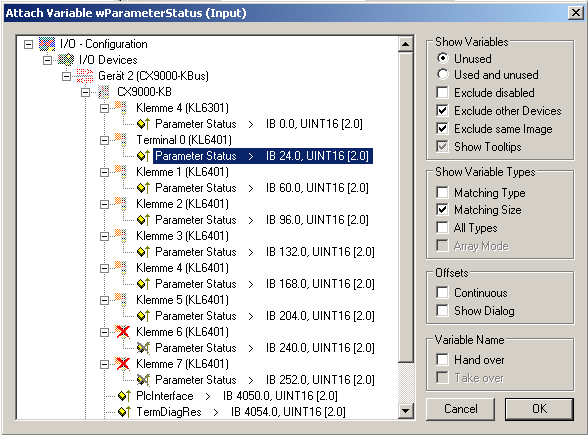

Choose the desired terminal in the "I/O - Configuration", click on "Parameter Status" and confirm with "OK". (see figure 2)

KL6401 - Linking to the TwinCAT System Manager 2:
TcLON_VerknuepfungenSMBild2


Figure 2

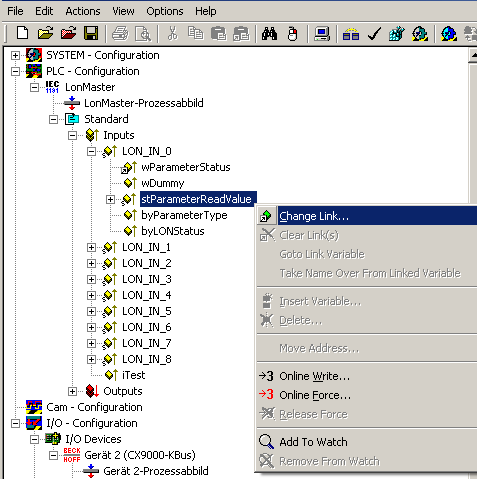

In the next step click on the input structure stParameterReadValue with the right mouse button and choose "Change Link". (see figure 3) wDummy is not linked.

KL6401 - Linking to the TwinCAT System Manager 3:
TcLON_VerknuepfungenSMBild3


Figure 3

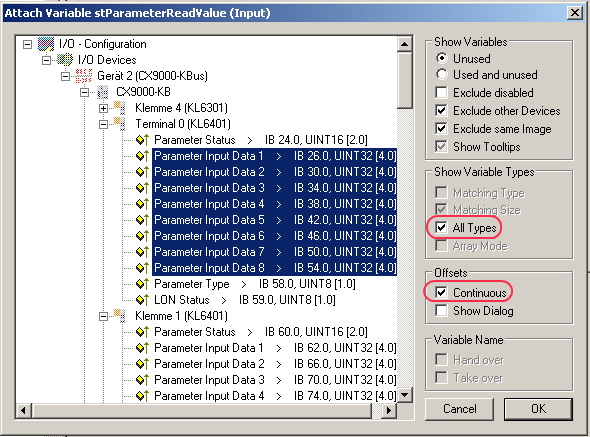

Choose "All Types" and "Continuous" and mark "Parameter Input Data 1" to"Parameter Input Data 8" with the left mouse button + left >SHIFT< button. (see figure 4) Then press the "OK" button.

KL6401 - Linking to the TwinCAT System Manager 4:
TcLON_VerknuepfungenSMBild4


Figure 4

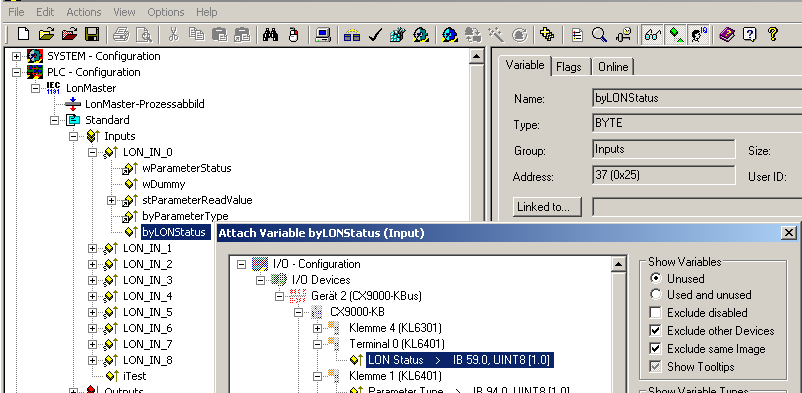

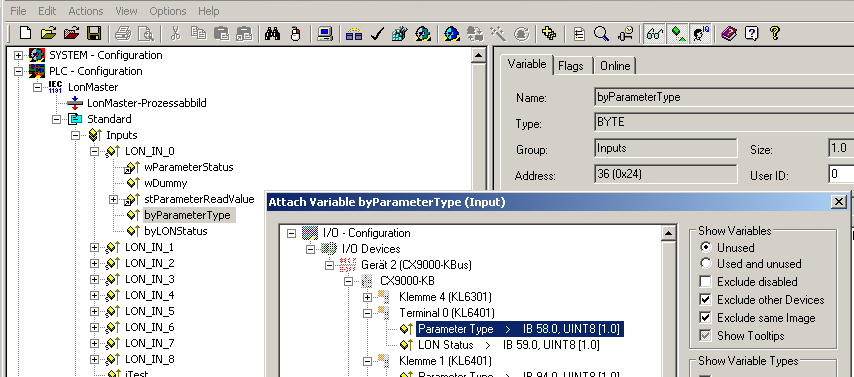

Link the variables byParameterType and byLONStatus. (see figure 5 and 6)

KL6401 - Linking to the TwinCAT System Manager 5:
TcLON_VerknuepfungenSMBild5

Figure 5

KL6401 - Linking to the TwinCAT System Manager 6:
TcLON_VerknuepfungenSMBild6


Figure 6

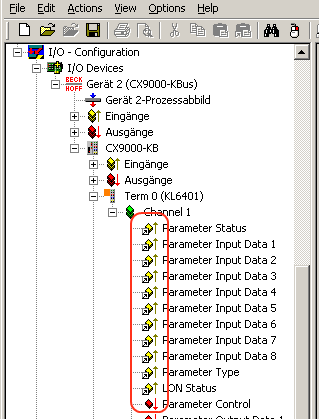

You can now check the connection. To do this, go to the KL6401 and open it (I/O - Configuration / I/O Devices). All terminal data should be marked by a small arrow (see Figure 7). If that is the case, then proceed in the same way with the outputs.

KL6401 - Linking to the TwinCAT System Manager 7:
Figure 7
