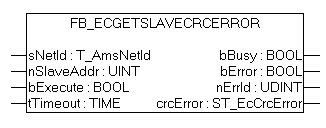

FB_EcGetSlaveCrcError

VAR_INPUT

VAR_INPUT
    sNetId      : T_AmsNetId;
    nSlaveAddr  : UINT;
    bExecute    : BOOL;
    tTimeout    : TIME := DEFAULT_ADS_TIMEOUT;
END_VAR

sNetId: This is a string that contains the AMS network identifier of the EtherCAT master device.

nSlaveAddr:  Fixed address of the EtherCAT slave, whose CRC error counter should be read.

bExecute: The block is activated by a rising edge at this input.

tTimeout: Maximum time allowed for the execution of the function block.

VAR_OUTPUT

VAR_OUTPUT
    bBusy       : BOOL;
    bError      : BOOL;
    nErrId      : UDINT;
    crcError    : ST_EcCrcError;
END_VAR

bBusy: This output is set when the function block is activated and remains set until an acknowledgement is received.

bError: This output is set up after the bBusy output has been reset if there has been an error in transmission of the command.

nErrId: Supplies the ADS error code associated with the most recently executed command if the bError output is set.

crcError:  CRC error counter of all ports.

Example of an implementation in ST:

PROGRAM TEST_GetSlaveCrcError
VAR
    fbGetSlaveCrcError      : FB_EcGetSlaveCrcError;
    sNetId          : T_AmsNetId := '172.16.2.131.2.1';
    bExecute        : BOOL;
    crcError        : ST_EcCrcError;
    nSlaveAddr          : UINT := 1001;
    bError          : BOOL;
    nErrId          : UDINT;
END_VAR

fbGetSlaveCrcError(sNetId:= sNetId, nSlaveAddr:= nSlaveAddr, bExecute:=bExecute);
crcError:=fbGetSlaveCrcError.crcError;
bError:=fbGetSlaveCrcError.bError;
nErrId:=fbGetSlaveCrcError.nErrId;

Requirements
