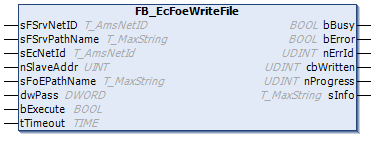

FB_EcFoeWriteFile
The function block FB_EcFoeWriteFile can be used to write files from a local data carrier to an EtherCAT device via the "File access over EtherCAT" mailbox protocol.
The file path can only point to the local file system on the computer. This means that network paths cannot be used here. |
Inputs
VAR_INPUT
sFSrvNetId : T_AmsNetId := '';
sFSrvPathName : T_MaxString;
sEcNetId : T_AmsNetId;
nSlaveAddr : UINT;
sFoEPathName : T_MaxString;
dwPass : DWORD := 0;
bExecute : BOOL;
tTimeout : TIME := T#200s;
END_VAR
Name | Type | Description |
---|---|---|
sFSrvNetId | T_AmsNetId | AMS network ID of the computer from which the file to be written is to be read. (Default: local computer) |
sFSrvPathName | T_MaxString | Contains the path and filename of the file to be read (e.g.: 'C:\Data\LogData.csv'). |
sEcNetId | T_AmsNetId | String containing the AMS network ID of the EtherCAT master device. |
nSlaveAddr | UINT | Address of the EtherCAT slave |
sFoEPathName | T_MaxString | Name of the file on the EtherCAT slave (e.g. 'LogData') |
dwPass | DWORD | Password |
bExecute | BOOL | The function block is activated by a positive edge at this input. |
tTimeout | TIME | Maximum time allowed for the execution of the function block. (Default: 200 s.) |
Outputs
VAR_OUTPUT
bBusy : BOOL;
bError : BOOL;
nErrId : UDINT;
cbWritten : UDINT;
nProgress : UDINT;
sInfo : T_MaxString;
END_VAR
Name | Type | Description |
---|---|---|
bBusy | BOOL | This output is set when the function block is activated, and remains set until a feedback is received. |
bError | BOOL | This output is set after the bBusy output has been reset when an error occurs in the transmission of the command. |
nErrId | UDINT | Supplies the ADS error code associated with the most recently executed command if the bError output is set. |
cbWritten | UDINT | Number of successfully written data bytes |
nProgress | UDINT | Write access progress (range: 0 - 100%). |
sInfo | T_MaxString | Additional FoE error information (reserved) |
Sample in ST:
A rising edge at the bExecute
variable triggers writing of the specified file via the "File access over EtherCAT" mailbox protocol. The file named in sFSrvPathName
is read from the selected computer (sFSrvNetID
). The file is stored on the selected EtherCAT slave (sEcNetId & nSlaveAddr
) under the name specified in sFoEPathName
. If a password is required for writing the file to the EtherCAT slave, this can be specified via dwPass
.
The read and write operation is not completed until bBusy
switches to FALSE. Only then can the error information or the number of bytes read be evaluated.
PROGRAM MAIN
VAR
fbEcWriteFile : FB_EcFoeWriteFile := (
sFSrvNetID := '5.0.34.38.1.1', (* NetID for source file *)
sFSrvPathName := 'C:\Data\LogData.csv', (* Pathname for source file *)
sEcNetId := '5.0.34.38.3.1', (* NetID of EtherCAT master *)
nSlaveAddr := 1004, (* EtherCAT slave address *)
sFoEPathName := 'LogData', (* Name of target file *)
dwPass := 0
);
bExecute : BOOL := TRUE;
bBusy : BOOL;
bError : BOOL;
nErrID : UDINT;
nBytesWritten : UDINT;
END_VAR
fbEcWriteFile (
bExecute := bExecute,
bBusy => bBusy,
bError => bError,
nErrId => nErrID
);
IF NOT bBusy THEN
bExecute := FALSE;
IF NOT bError THEN
(* done, no error *)
nBytesWritten := fbEcWriteFile.cbWritten;
ELSE
(* evaluate error *)
nBytesWritten := 0;
END_IF
fbEcWriteFile (bExecute := FALSE);
END_IF
Requirements
Development environment | Target platform | PLC libraries to include |
---|---|---|
TwinCAT v3.1.4024.56 | PC or CX (x86, x64, ARM) | Tc2_EtherCAT >= 3.5.1.0 |
