Creating an Errorlogfile

To localize occurred errors and to get a better description of these errors the TwinCAT FTP Client has the possibility to protocol these errors in a text file.

The text file is called "TcFTPErrorLog.txt" and will be created in the folder where the "EXE" of the TwinCAT FTP Client is located (usually "\Hard Disk\System").
You are able to activate the functionality with the following Registry Key:

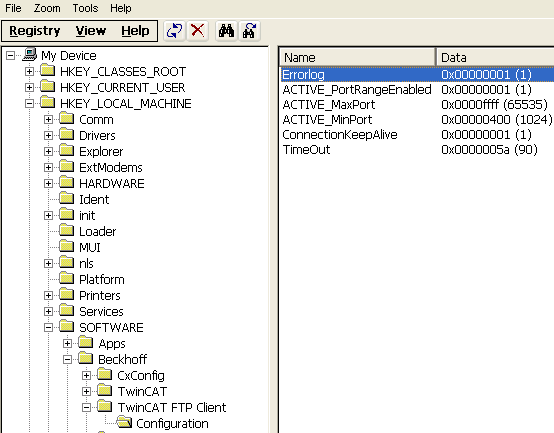

"HKEY_LOCAL_MACHINE\\Software\\Beckhoff\\TwinCAT FTP Client\\Configuration\ErrorLog"

Creating an Errorlogfile 1:

You start the functionality with the Value 1.
You stop the functionality with the Value 0.
All changes takes effect after a restart of the TwinCAT System.

Notice

Damage of storage medium

To many write cycles to the Compact Flash Card can shorten its service life.

Notice

Damage of storage medium

Use the function of the Errorlogfile only if you do tests!
